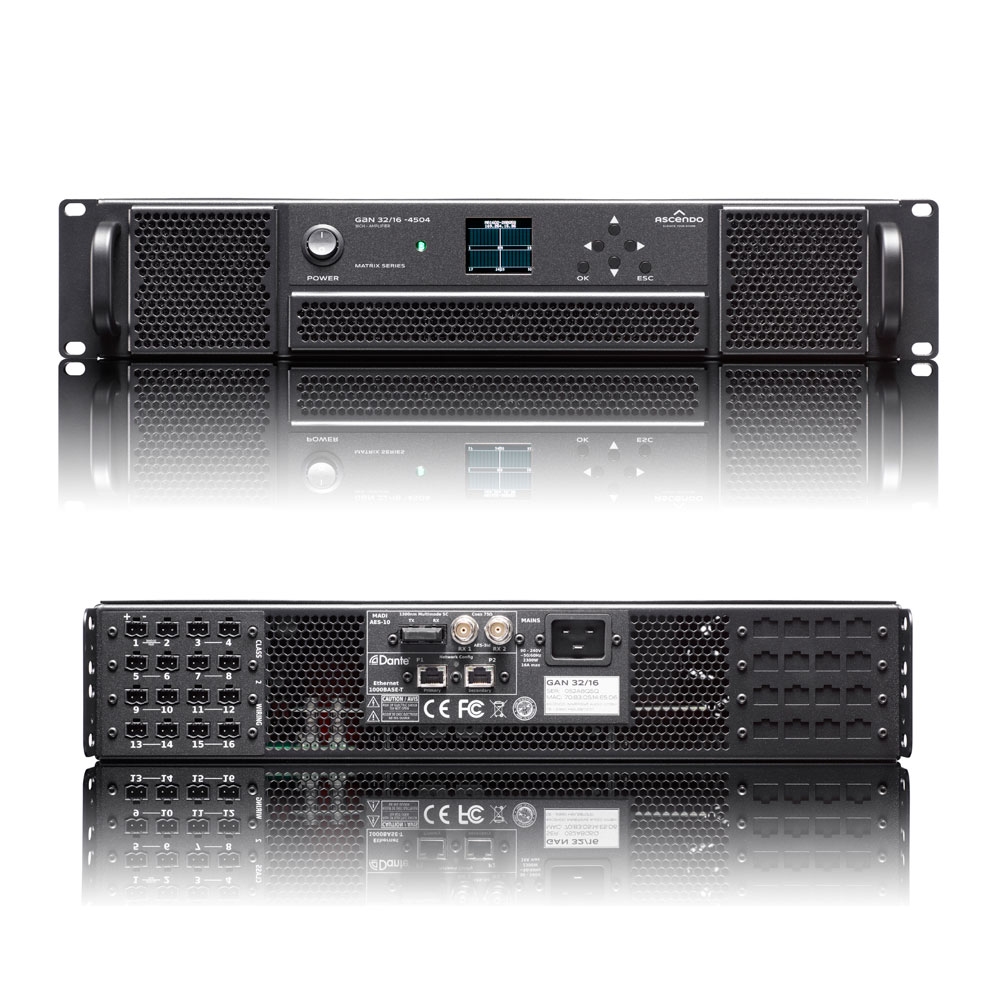

Ascendo GAN Amplifiers

Equipped with the latest GaN transistors, delivering increased power for size and weight.

Variations:

GAN 16/16-4504, DSP chan 16, chan 16, 16 x 280W, 8 x 500W, W x H X D (mm) 483 x 87.5 x 421, O/P Phoenix, I/P Dante AES67
GAN 32/16-4504, DSP chan 32, chan 16, 16 x 280W, 8 x 500W, W x H X D (mm) 483 x 87.5 x 421, O/P Phoenix, I/P Dante AES67
GAN 24/24-6704, DSP chan 24, chan 24, 24 x 280W, 12 x 500W, W x H X D (mm) 483 x 87.5 x 421, O/P Phoenix, I/P Dante AES67
GAN 32/24-6704, DSP chan 32, chan 24, 24 x 280W, 12 x 500W, W x H X D (mm) 483 x 87.5 x 421, O/P Phoenix, I/P Dante AES67
GAN 24/24-6704², DSP chan 24, chan 24, 24 x 280W, 12 x 500W, W x H X D (mm) 483 x 87.5 x 431, O/P Phoenix, I/P Dante AES67
GAN 32/24-6704², DSP chan 32, chan 24, 24 x 280W, 12 x 500W, W x H X D (mm) 483 x 87.5 x 431, O/P Phoenix, I/P Dante AES67
GAN 32/32-9004, DSP chan 32, chan 32, 32 x 280W, 16 x 500W, W x H X D (mm) 483 x 87.5 x 421, O/P Phoenix, I/P Dante AES67
GAN 32/32-9004², DSP chan 32, chan 32, 32 x 280W, 16 x 500W, W x H X D (mm) 483 x 87.5 x 431, O/P Phoenix, I/P Dante AES67

For more detailed specifications, please see the datasheet in DOWNLOADS
