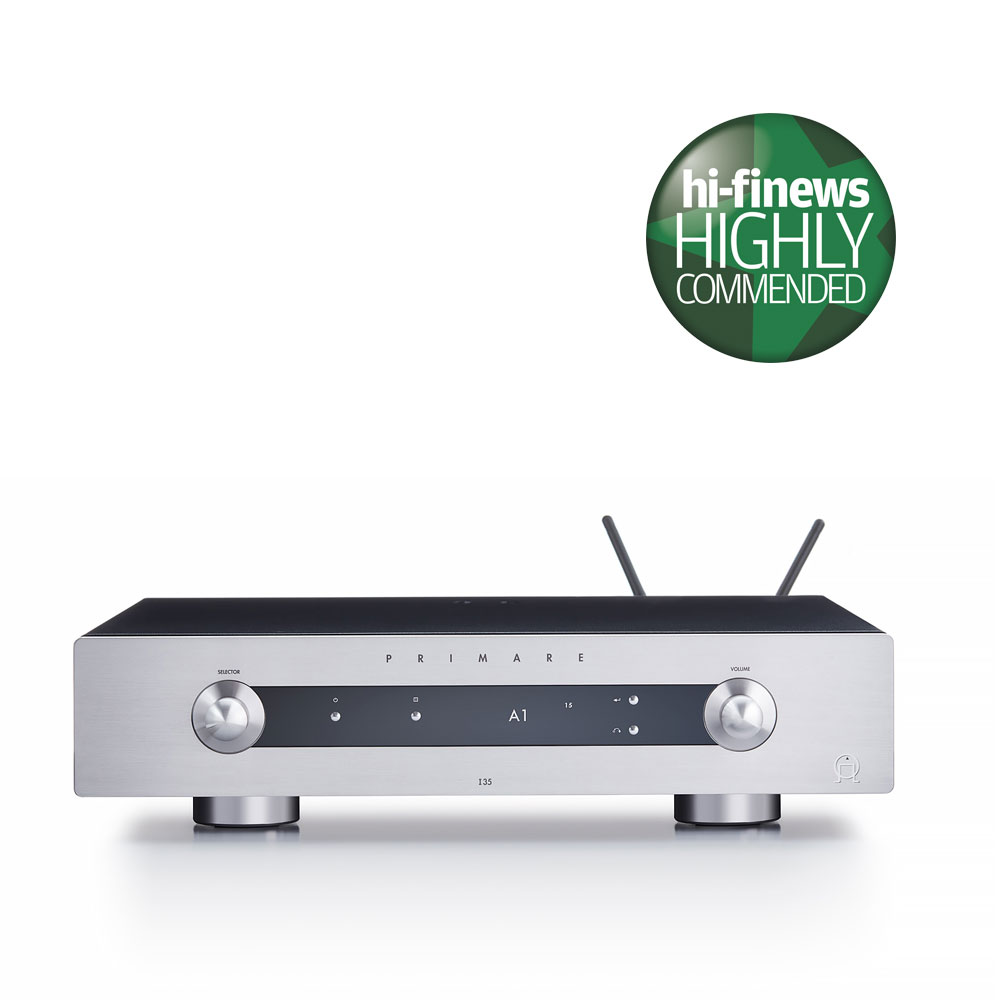

Primare I35 PRISMA

Primare I35 PRISMA

Categories: ,

Description

The I35 PRISMA integrated amplifier uses UFPD 2 power amplification technology, based on the new UFPD 2 Power Supply, which possesses significantly greater efficiency with lower ripple to generate 150 watts at 8 ohms of absolutely linear power delivery across the entire audible bandwidth. Includes a full-featured DAC stage, Prisma connectivity and control technology and adds two pairs of XLR inputs.

Features

AMPLIFIER
Output Power: 2 x 150W 8Ω; 2 x 300W 4Ω

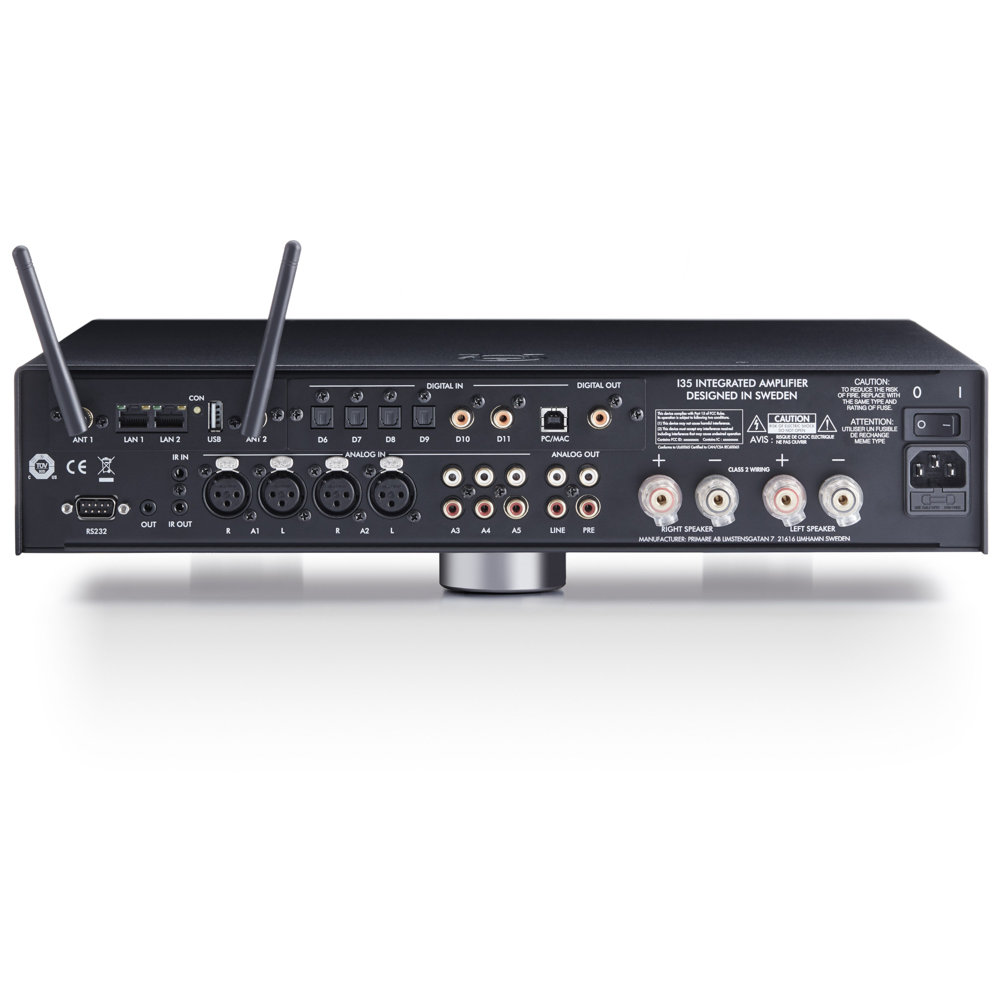

Analog Inputs: 2 pair XLR; 3 pair RCA
Analog Outputs: PRE 1 pair RCA; Line 1 pair RCA
Frequency Response: 20Hz – 20kHz, -0.2dB
THD + N: < 0.01%, 20Hz – 20kHz, 10W at 8Ω
Signal to Noise: >100dB
DAC
Inputs: 4 x TOSLINK (192kHz/24 bit); 2 x RCA (192kHz/24 bit); 1x USB-B up to 768kHz/32bit; up to DSD256 (11.2MHz)
Output: 1 x RCA (analog in = 48kHz out; digital in = pass-through)
Frequency Response: 20Hz – 20kHz +0,1/-0,65
Signal to Noise: >90dB
PRISMA
Audio Formats: WAV, LPCM, AIFF, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, DSD
Wired Inputs: USB-A, LAN (up to 192kHz/24 bit; DSD 128/5.6MHz)
Wireless Inputs: Bluetooth®, AirPlay, Spotify Connect, Chromecast built-in
WLAN: IEEE 802.11 a/b/g/n/ac compliant; 2.4/5g Hz b, g, n mode
GENERAL
Control: C25 remote control; RS232; IR in/out; Trigger out
Power Consumption: Standby 0.5W; Operate <32W analog only; <37W DAC; <40W DAC and Prisma
Dimensions (w x d x h): 430 x 420 x 106 mm with knobs and connectors
Weight: 11 kg
Colour Options: Black or Titanium

Also available as:

I35: analog inputs only, without DAC or Prisma

I35 DAC: analog and digital inputs, without Prisma
