Description

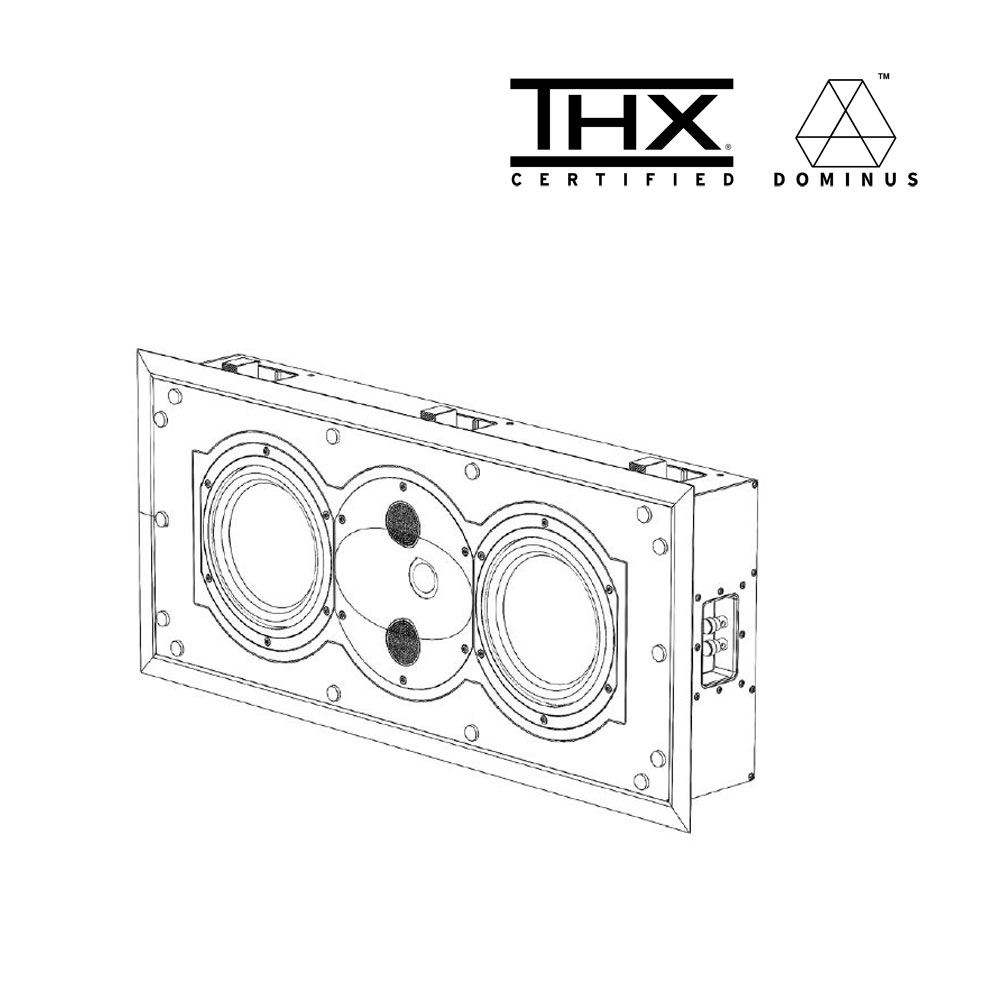

The R5c design adapted for THX Dominus Certified in-wall applications.
Specifications:
- Enclosure Alignment: 3-way acoustic suspension
- Driver complement: DPC Array: 26mm (3) Silk Dome; Woofers: 165mm (2) HPF
- Sensitivity: 89.4dB / 2.83V / 1.0m
- Impedance: 4Ω nominal / 3.4Ω min
- Response Linearity: 80 – 20kHz +/-1.5dB window
- Frequency Response (-10dB): acoustic suspension 40 – 32kHz
- Typical In Room bass extension: acoustic suspension 34Hz
- Dimensions (HxWxD): 298 x 665 x 111mm
- Mounting Dimensions (HxWxD): 257 x 624 x 101.7mm
- Weight: 15.9 kg
- Recommended Amplifier Power: 50 – 250W RMS
- SPL capability @1m (100-20kHz): 113.4dB peak; 111.0dB peak <3% 2nd, 3rd Harmonics
- Certification: THX Dominus, THX Ultra
