Description

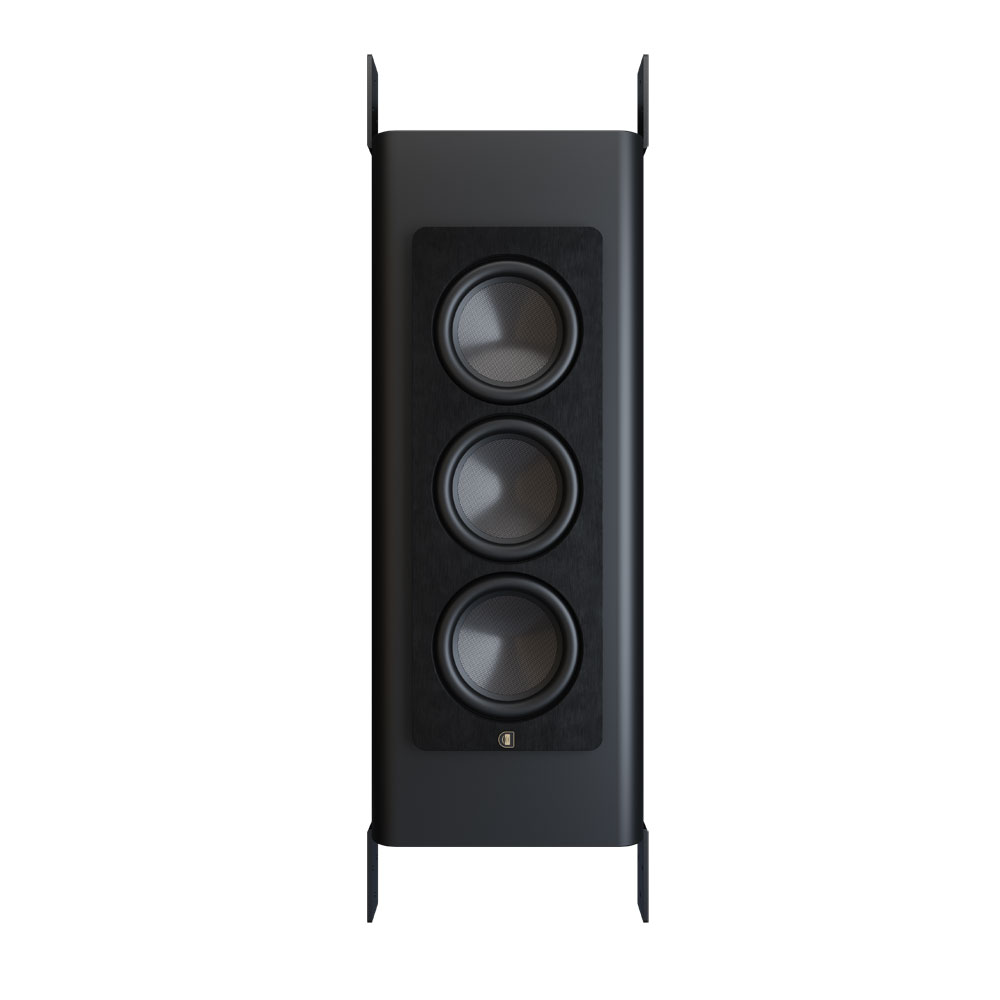

Designed for applications where space is a premium, the D3is works equally well mounted in-wall or on-wall. Proprietary isolation mounts and brackets are designed into the enclosure to reduce overall vibration and noise from transmitting to the adjacent wall. Powered by Perlisten’s 1500W amplifier now in its own chassis, utilizing a larger 2.8” LCD touchscreen display. Rack mounting hardware is included. Common to all Perlisten subs, all functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy.
Specifications
- Amplifier: 1500W rms
- Driver complement: (3)215mm (8.5″), Carbon fibre diaphragm
- Reference sensitivity: 89.5 dB /150mV/ 1.0m
- Frequency Response: THX EQ: 20-290Hz (-6dB)/16-350Hz (-10dB), Boost (Large Room): 17-290Hz (-6dB)/15-350Hz (-10dB), EQ Cut (Small Room): EQ 31-290Hz (-6dB)/23-350Hz (-10dB)
- Inputs: (1) Balanced XLR, (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered, (1) Unbalanced RCA unbuffered, (1) Digital AES/2
- Subwoofer Dimensions overall (HxWxD): 920.8 x 355.6 x 146.1mm (without brackets)
- Amplifier Dimensions overall (HxWxD): 89.0 x 429.2 x 322.4mm
- Weight: subwoofer 39.7 kg, amplifier 6.1 kg
For full specs see datasheet in REVIEWS AND DOWNLOADS
