Description

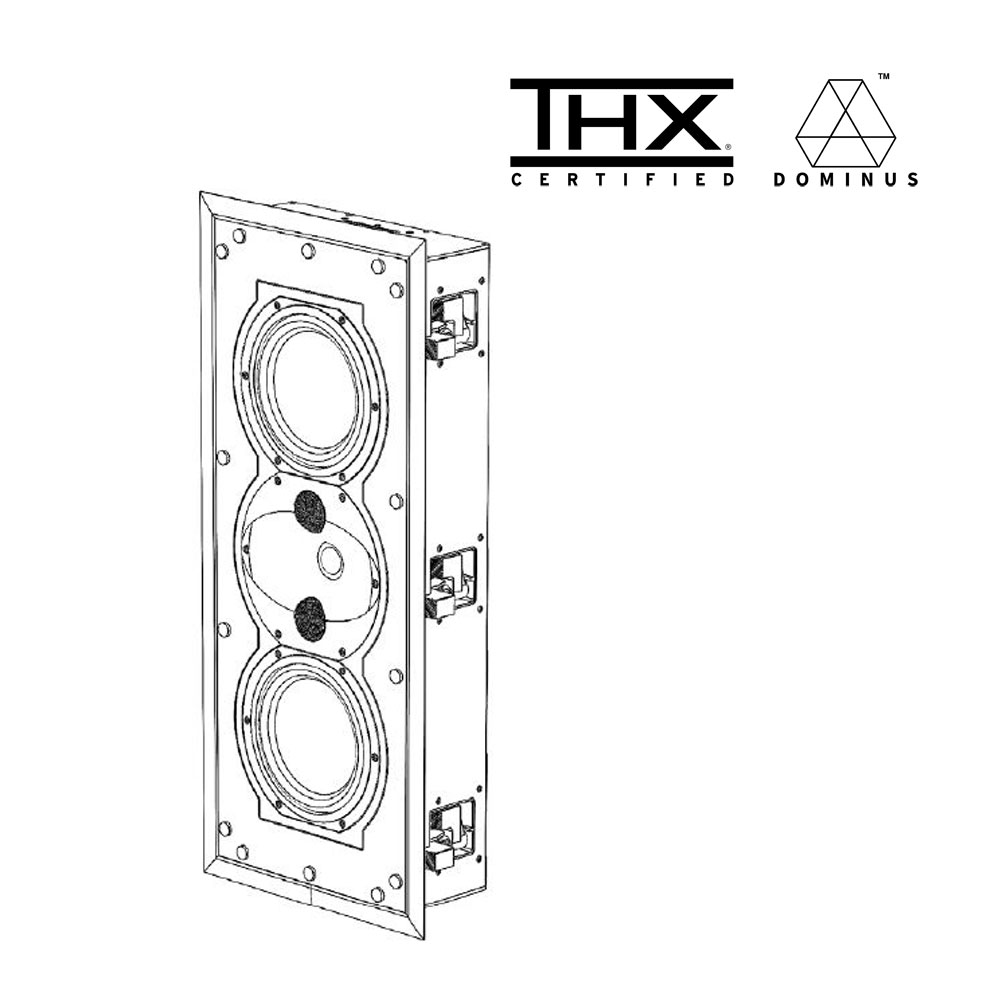

The R5m design adapted for THX Dominus Certified in-wall applications.

Specifications:

  • Enclosure Alignment: 3-way acoustic suspension
  • Driver complement: DPC Array: 26mm (3) Silk Dome; Woofers: 165mm (2) HPF
  • Sensitivity: 89.2dB / 2.83V / 1.0m
  • Impedance: 4Ω nominal / 3.4Ω min
  • Response Linearity: 80 – 20kHz +/-1.5dB window
  • Frequency Response (-10dB): acoustic suspension 39 – 32kHz
  • Typical In Room bass extension: acoustic suspension 34Hz
  • Dimensions (HxWxD): 665 x 298 x 111mm
  • Mounting Dimensions (HxWxD): 624 x 257 x 101.7mm
  • Weight: 15.9 kg
  • Recommended Amplifier Power: 50 – 250W RMS
  • SPL capability @1m (100-20kHz): 113.2dB peak; 111.0dB peak <3% 2nd, 3rd Harmonics
  • Certification: THX Dominus, THX Ultra
