Flagship AV processor that supports full 4K UHD video, with high speed video switching, in addition to the latest Dolby Atmos and DTS-X object-oriented surround sound formats. The RMC-1 incudes 16 balanced channels, an all analogue preamplifier section, precision 32-bit AD/DA conversion, and an advanced 4K UHD video management system. Eight HDMI inputs and dual HDMI outputs support 2.0b and HDCP 2.2, ensuring theatre-like video quality from all 4K UHD HDR10 sources and equipment.


  • Dolby Atmos (up to 9.1.6); Dolby TrueHD (up to 7.2); Dolby Digital Plus; Dolby Digital; DTS:X (up to 7.1.4); DTS-HD Master Audio; DTS-HD High Resolution Audio; DTS 5.1; Multi-Channel PCM.

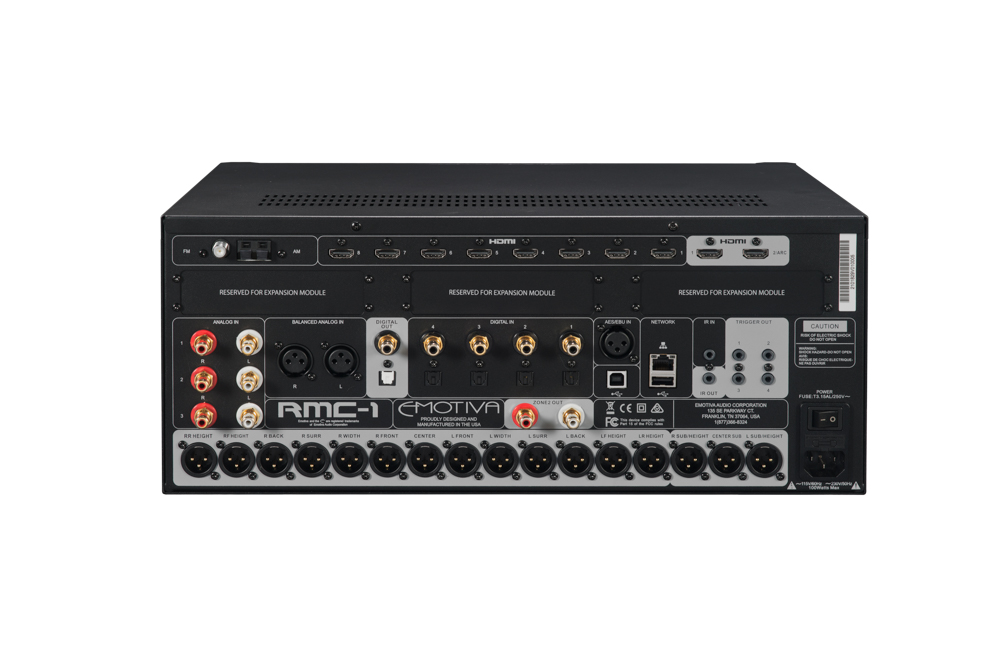

  • Analogue Audio Outputs: (1) set 16 channels balanced XLR; (1) pair stereo: analogue line level Zone 2 output unbalanced; (1) high quality 1/8” stereo headphone output.
  • Digital Audio Inputs: (4) Toslink optical S/PDIF digital audio (up to 24/192); (4) Coax (RCA) electrical S/PDIF digital audio (up to 24/192); (1) AES/EBU (XLR) digital audio; (1) USB Type B digital audio (UAC2 USB audio up to 24/192k).
  • Other Inputs:
    (2) USB Type A digital data inputs (for firmware updates and future enhancements); (1) Ethernet port (RJ-45) (network connection for Dirac and remote control applications); (3) Expansion slots for additional optional custom Input/Output modules
  • Dimensions WxHxD mm (inc feet): 432 x 191 x 394

Model Variations:

RMC-1L: As RMC-1 without expansion slots
Dimensions WxHxD mm (inc feet): 432 x 146 x 394
