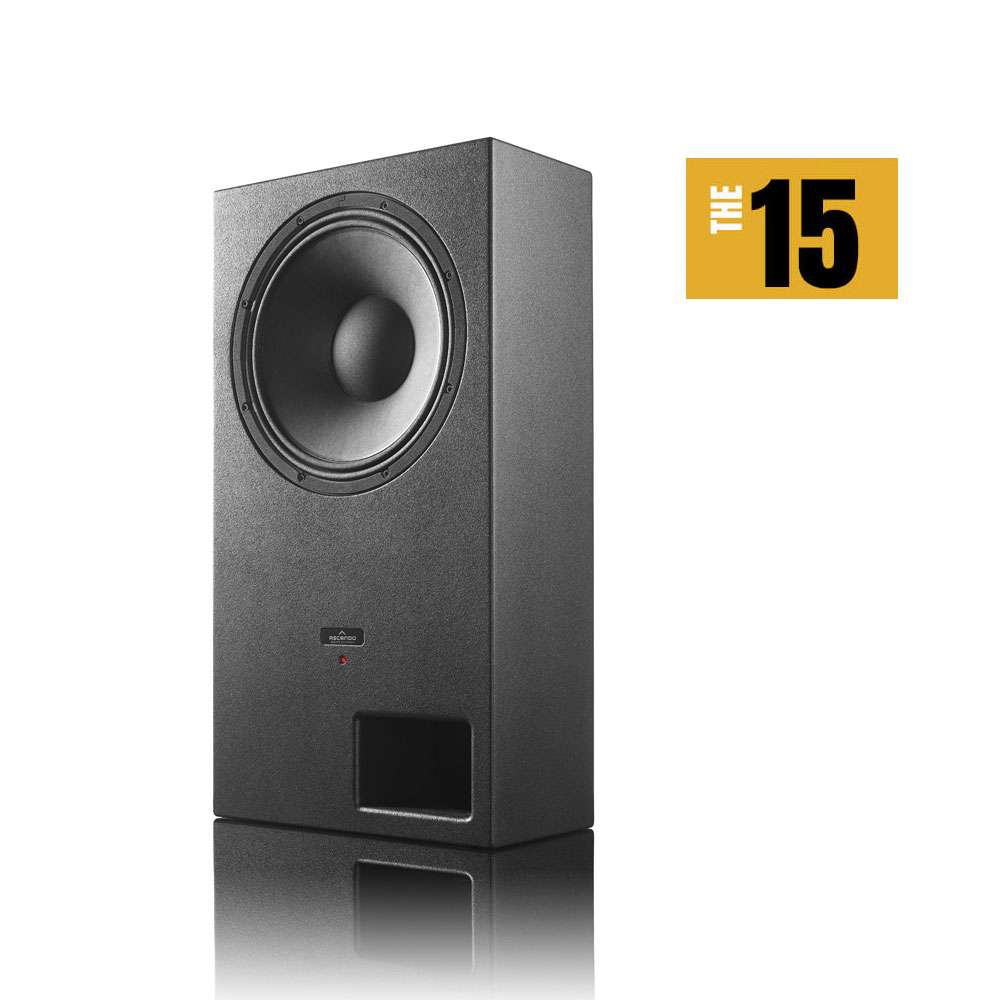

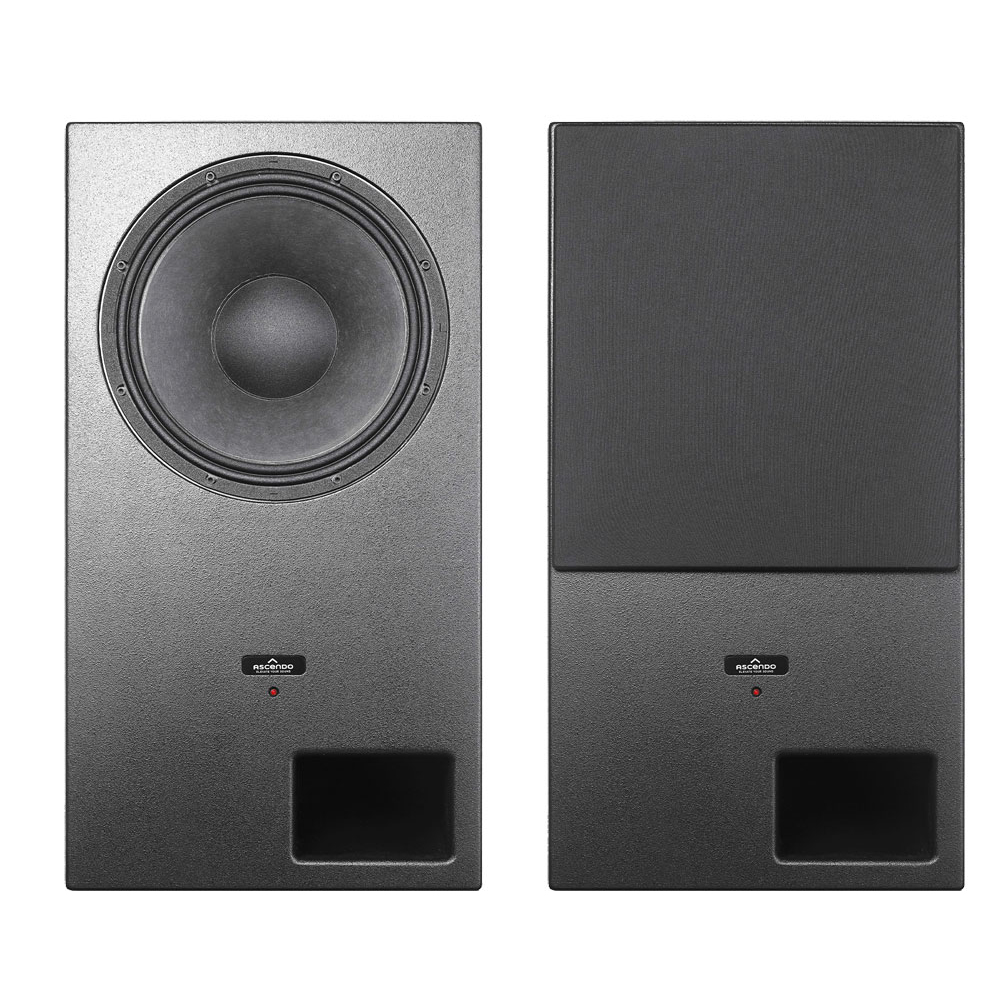

AIA THE15, 15” Coax Monitor

Description

Variations:

PRO PASSIVE ON WALL, 125 dB (Cont.) / 135 dB (Peak), 70 – 21 kHz -3 dB, Dimensions W x H x D mm (Without Grille): 470 x 870 x 240, finish: Structural paint black, Recommended ASCENDO electronics: AIA2-2704, AIA2-6004, AIA4-2404, AIA4-6004, AIA8-6004, AIA ULN3-6004

PRO ACTIVE EXT ON WALL, 125 dB (Cont.) / 135 dB (Peak), 65 – 21 kHz -3 dB, Dimensions W x H x D mm (Without Grille): 470 x 870 x 240, finish: Structural paint black, 2Ch DSP + 2Ch Amplifier are required, Recommended ASCENDO electronics: DSP ULN2-2604 D

PRO PASSIVE ON WALL, BERYLLIUM DOME, 125 dB (Cont.) / 135 dB (Peak), 70 – 21 kHz -3dB, Dimensions W x H x D mm (Without Grille): 470 x 870 x 240, finish: Structural paint black, Recommended ASCENDO electronics: AIA2-2704, AIA2-6004, AIA4-2404, AIA4-6004, AIA8-6004, AIA ULN3-6004

PRO ACTIVE EXT ON WALL, BERYLLIUM DOME, 125 dB (Cont.) / 135 dB (Peak), 65 – 21 kHz -3dB, Dimensions W x H x D mm (Without Grille): 470 x 870 x 240, finish: Structural paint black, 2Ch DSP + 2Ch Amplifier are required, Recommended ASCENDO electronics: DSP ULN2-2604 D

For more detailed specifications, please see Datasheets in DOWNLOADS
