Description

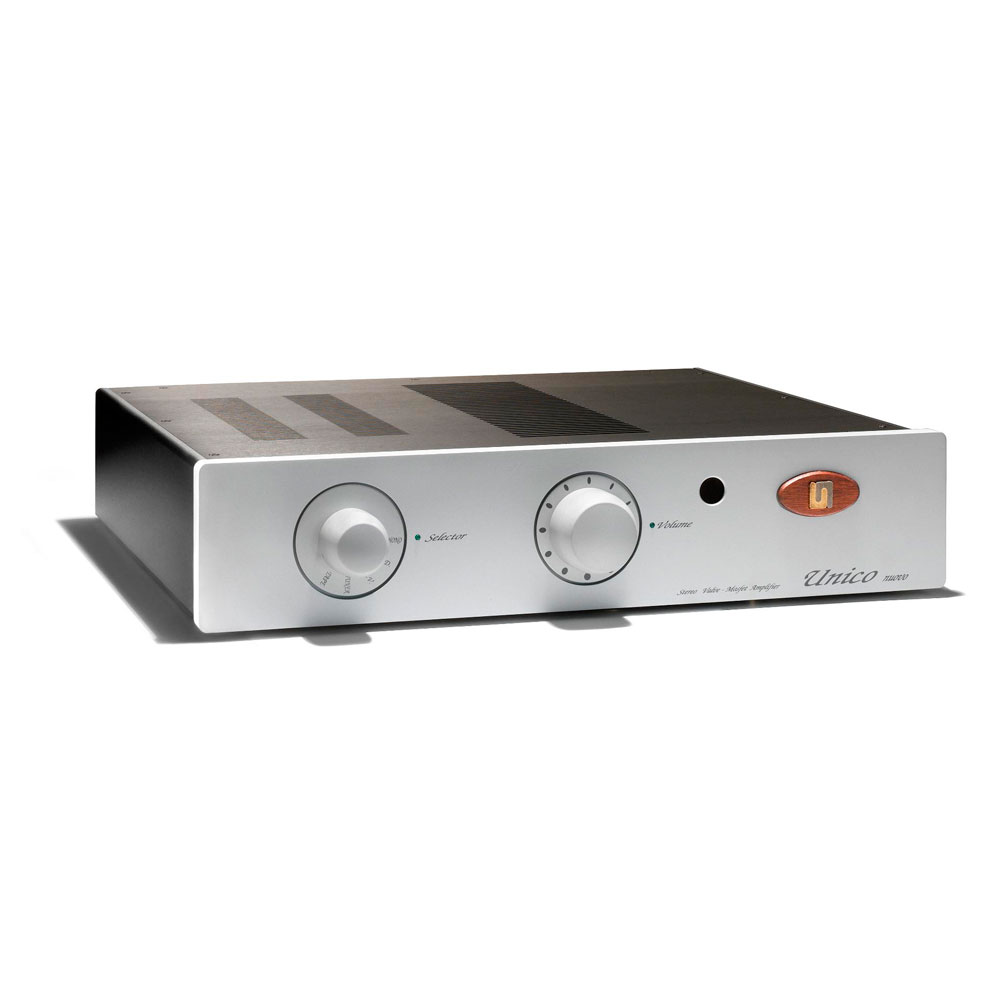

Hybrid Stereo Integrated Amplifier

Features:

  • Output Power: 95W
  • Output stage: 8X POWER MOSFET
  • Valve: 2 x ECC83
  • Input: 5 Line RCA (1 phono optional)
  • Line Output: 1 tape, 1 sub (with volume control)
  • Input stage: Pure Class A, double triode in parallel
  • Frequency response: -0.1dB @ 10Hz, -0.5dB @ 100kHz
  • Input Impedance: 50kOhm // 47pF
  • Sensitivity: 260mV RMS
  • Output Connector: 4 + 4 bi-wiring
  • Feedback factor: 10dB
  • THD: 0.15% @ 10W/1kHz
  • Power consumption: 400W max
  • Dimensions (W x H x D cm): 43.5 x 9.5 x 43
  • Net weight: 16kg
  • Black or Silver finish

UNICO NUOVO PHONO STAGE (optional)

  • Input Impedance: 47 kohm / 220 pF (MM) – 100 ohm / 440 pF (MC)
  • Gain: MM 40 dB, MC 50 dB
  • Gain Selection: +0 dB / +10 dB
  • Maximum input voltage: 120 mV @ 1kHz (MM)
  • RIAA equalization: active at low frequencies, passive at high frequencies
  • THD: 0.09% @ 5mV, 1kHz, MM
