Description

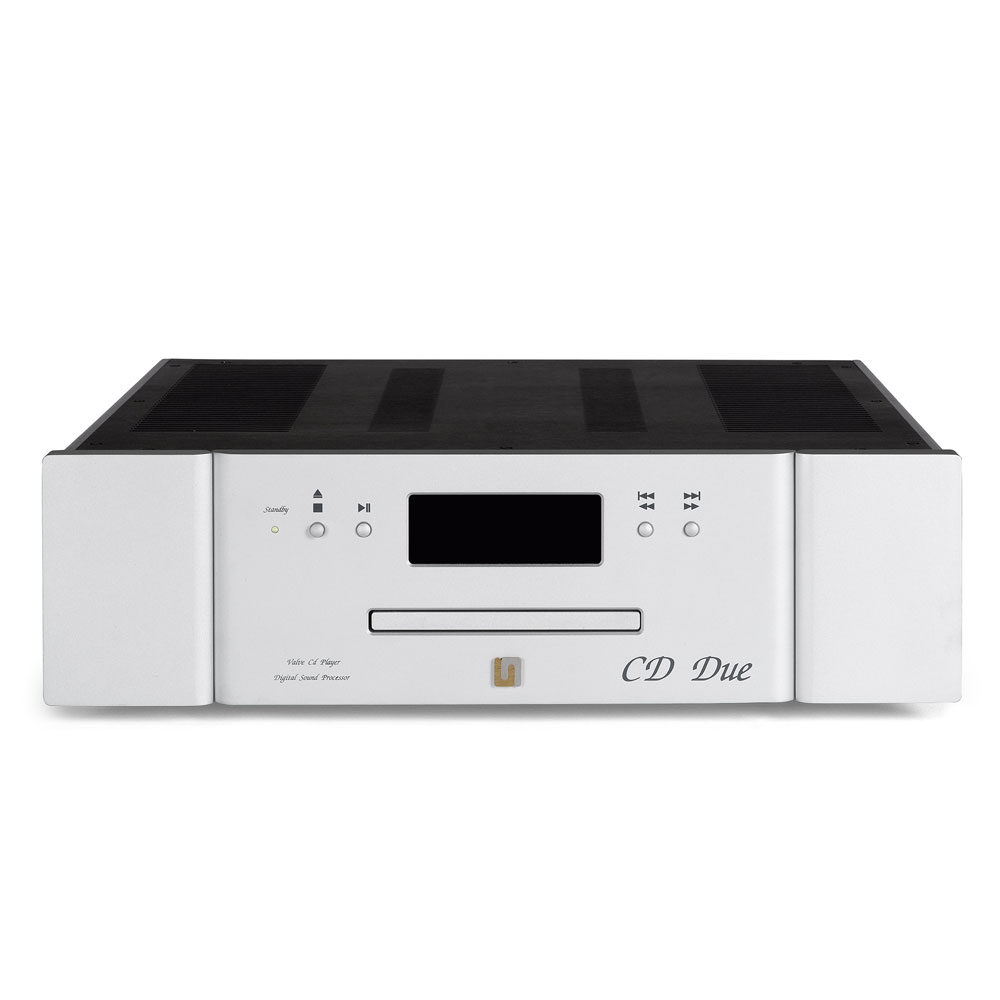

Hybrid DAC with CD Transport

Features:

  • Valves: 4 x ECC83
  • Digital Inputs: 1 x USB 2.0: 44.1 – 384 kHz, DSD128, DSD256 Ready Res: 16 to 32 bits; 1 x S/PDIF: 0.5Vpp on 75 Ohms, 44.1 -192 kHz, DSD64 (DoP) Res: 16 to 24 bits; 1x AES/EBU: 2Vpp on 110 Ohms, 44.1 -192 kHz, DSD64 (DoP) Res: 16 to 24 bits; 1 x Toslink™: 44.1 – 96 Res.: 16 to 24 bits; 1 x Bluetooth™ 3.0: 44.1, 48kHz Res: 16 bits
  • Digital Output: 1x S/PDIF 0.5Vpp on 75 Ohms; 1x AES/EBU 2Vpp on 110 Ohms; 1x Toslink™
  • Transport: CD-Loader
  • Display 128 X 64 White OLED graphic display
  • DAC: ESS Sabre ES9018K2M SNR: 128dB (0dBFS, 1kHz, 192kHz, “A” weighted ) THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
  • I/V Converter: AD8597/AD8599 ultra low distortion and ultra low noise
  • Valve Output Stage: Number of channels: 2; Output stage: Double Triode, pure class A differential Totem-pole
  • Valve model: 4 x ECC83
  • Output audio connectors: 2 x RCA, 2 x XLR
  • Filters: 3 Digital Filters selectable by R.C: FLT 1: Fast Roll-Off, linear Phase; FLT 2: Fast Roll-Off, minimum Phase; FLT 3: Slow Roll-Off, linear Phase
  • Solid state Output selectable
  • Selectable absolute Phase
  • Dimensions (W x H x D cm): 45 x 13 x 38
  • Net weight: 10kg
  • Black or Silver finish
