Description

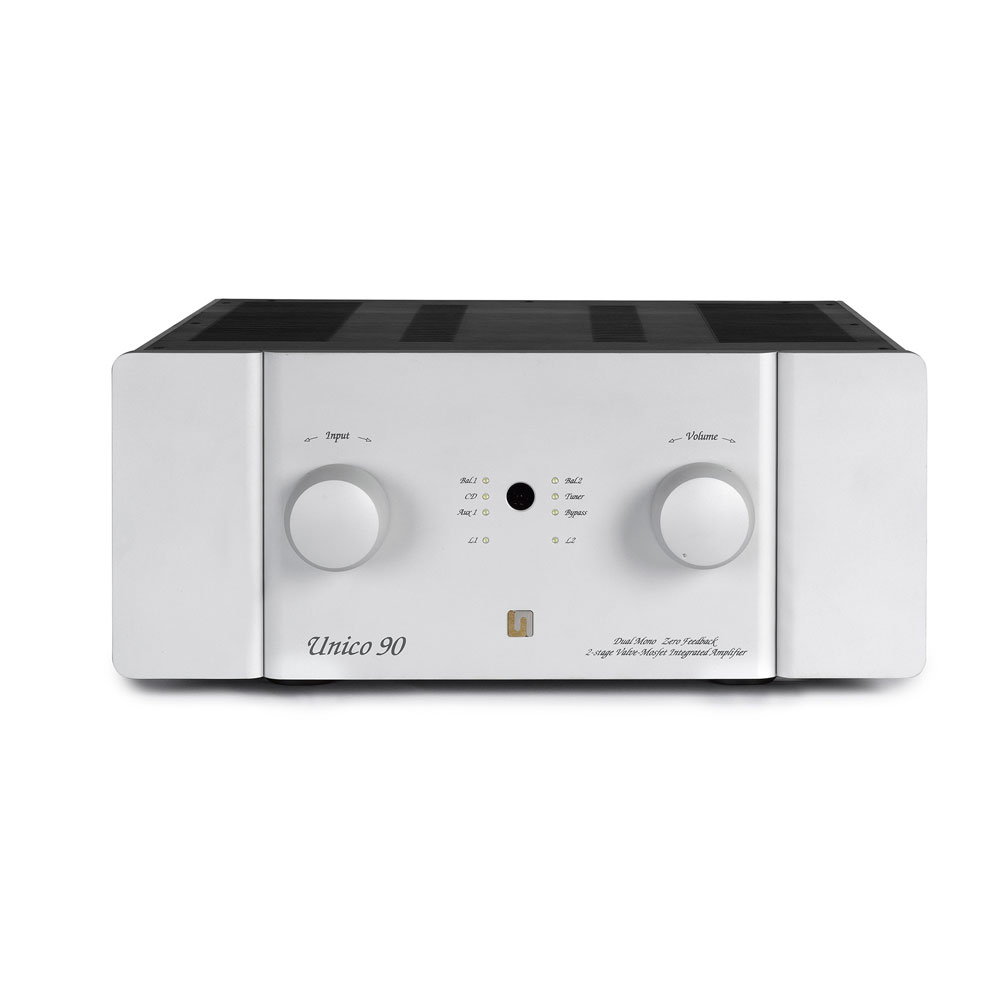

Hybrid Stereo Integrated Amplifier

Features:

  • Output power: 100+100 W RMS on 8Ω / 160+160 W RMS on 4Ω
  • Valves: 2X ECC83, 4X ECC81
  • Output stage: Class AB thermostable, 6X Hexfet
  • Input stage: Pure A class, double triode totem pole ECC83 and parallel totem pole ECC81. This single stage due to the particular circuitry is able to amplify the input signal and drive directly the power stage
  • Number of stages: 2, this amplifier due to the particular circuitry is realized by only two stages: input stage and output stage, and use only local feedback
  • Input: 6 line (3 RCA, 2 XLR, 1 “bypass” RCA)
  • Line Outputs: 1 tape, 1 sub (volume controlled)
  • Frequency response: -1dB @ 12Hz e 45kHz -3 dB
  • Input impedance: 21Kohm // 300pF
  • Input sensitivity: 860mV RMS
  • Output connectors: 4 + 4 bi-wiring
  • Global Feedback factor: 0 dB
  • THD: < 0.15% @ 1kHz, 1 W < 0.5% @ 1kHz, 10 W
  • Output resistance: <0.4 ohm, resistive on all audio frequencies
  • Power Consumption: 550 W (at max power on 8 ohm)
  • Dimensions (W x H x D cm): 43.5 x 18 x 44
  • Net weight: 20kg
  • Black or Silver finish
