Description

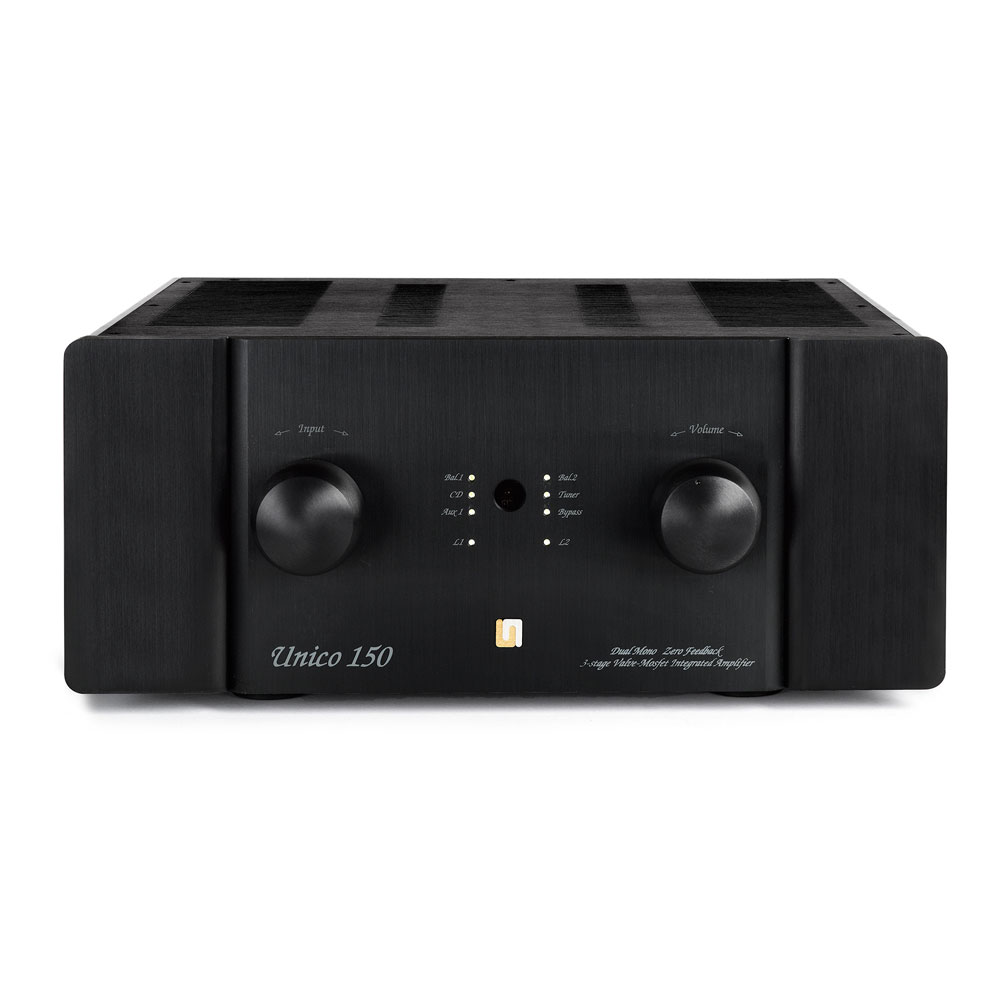

Hybrid Stereo Integrated Amplifier

Features:

  • Output power: 150+150 W on 8Ω / 250+250 W on 4Ω
  • Valves: 2X ECC83 2X 6H30
  • Output stage: Class AB thermostable, 8X Hexfet
  • Input stage: Pure A class, double triode totem pole ECC83
  • Driver stage: Pure A class, double triode totem pole 6H30
  • Input: 6 line (3 unbalanced, 2 balanced, 1 “bypass” unbalanced)
  • Line Outputs: 1 tape, 1 sub (volume controlled)
  • Frequency response: -1dB @ 12Hz & 45kHz, -3 dB @ 6Hz & 80 kHz
  • Input impedance: 24kΩ // 100pF
  • Input sensitivity: 860mV RMS
  • Output connectors: 4 + 4 bi-wiring
  • Global Feedback factor: 0 dB
  • Local Feedback factor: 16 dB
  • THD: < 0.005% @ 1kHz, 1 W < 0.002% @ 1kHz, 10 W < 0.003% @ 1kHz, 100 W < 0.002%, from 20 to 20000 Hz, 150 W
  • Output resistance: <0.4Ω, resistive on all audio frequencies
  • Power Consumption: 550 W (at max power on 8 ohm)
  • Dimensions (W x H x D cm): 43.5 x 18 x 44
  • Net weight: 25kg
  • Black or Silver finish
