Description

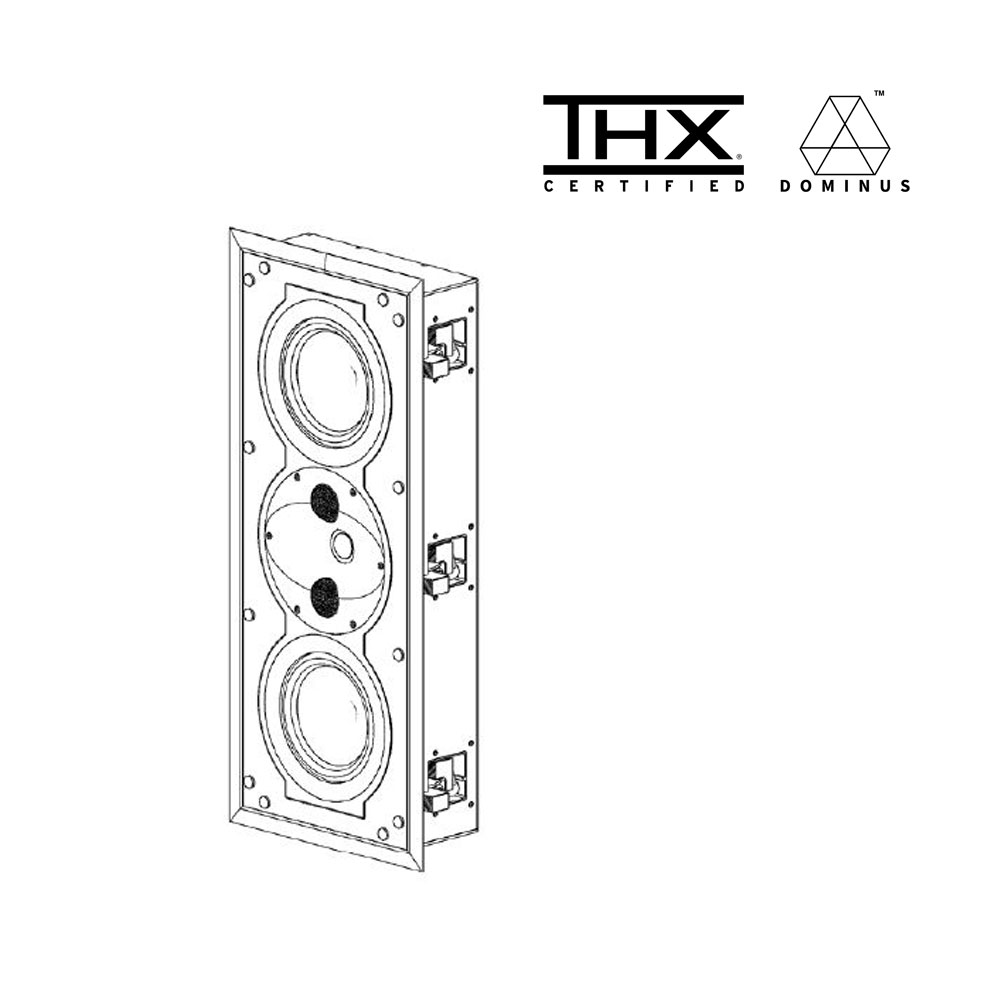

The award-winning S5m design adapted for THX Dominus Certified in-wall applications.

Specifications:

  • Enclosure Alignment: 3-way acoustic suspension
  • Driver complement: DPC Array: 28mm Beryllium, 28mm (2) Textreme TPCD; Woofers: 180mm (2) Textreme TPCD
  • Sensitivity: 91.9dB / 2.83V / 1.0m
  • Impedance: 4Ω nominal / 3.4Ω min
  • Response Linearity: 80 – 20kHz +/-1.5dB window
  • Frequency Response (-10dB): 52 – 37kHz
  • Typical In Room bass extension: 46Hz
  • Dimensions (HxWxD): 624 x 257 x 101.7mm
  • Mounting Dimensions (HxWxD): 624 x 257 x 101.7mm
  • Weight: 15.9 kg
  • Recommended Amplifier Power: 100 – 350W RMS
  • SPL capability @1m (100-20kHz): 117.3dB peak; 117.0dB peak <3% 2nd, 3rd Harmonics
  • Certification: THX Dominus
