Description

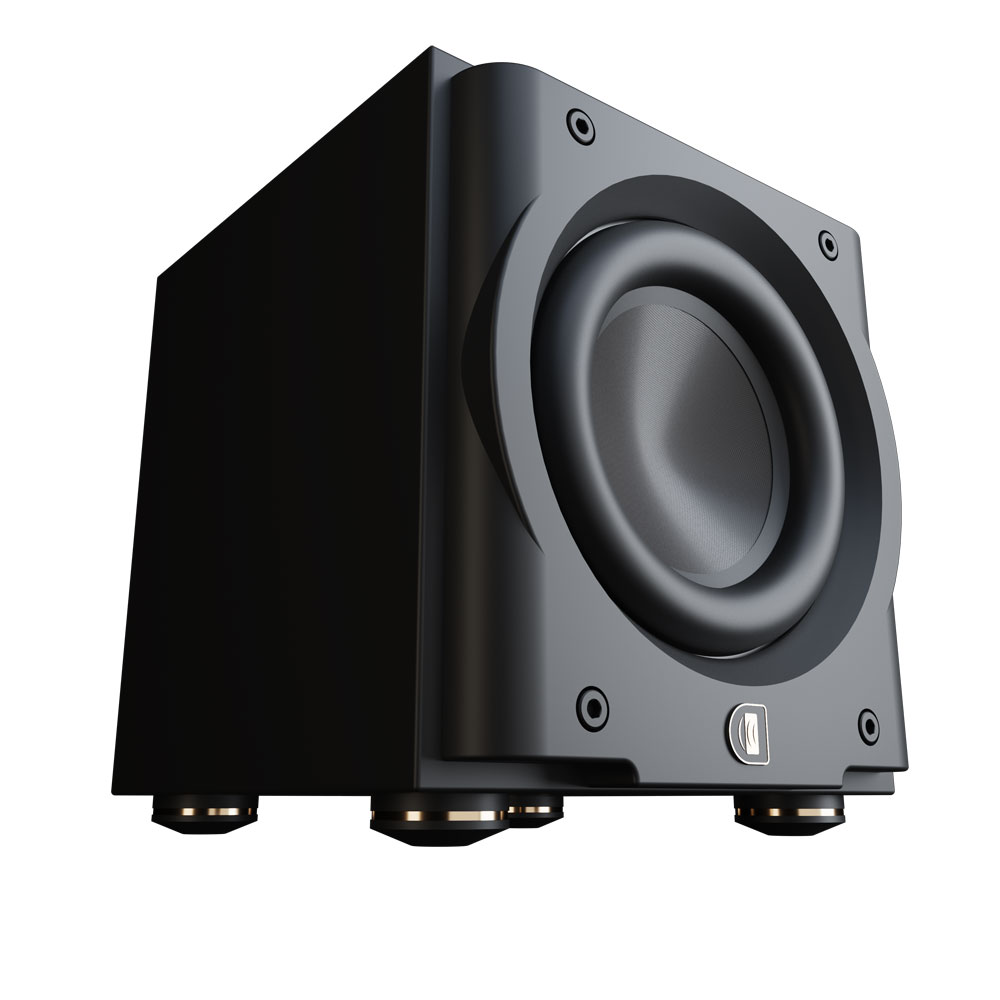

The R8s is an 8” single driver active subwoofer, powered by a proprietary 600W amplifier. All functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor. Control is via 2.4” LCD touchscreen display and smartphone app.
Specifications
- Amplifier: 600W rms
- Driver complement: 215 mm (8″), Carbon fibre diaphragm
- Reference sensitivity: 86 dB /150mV/ 1.0m
- Frequency Response: THX EQ: 20-265Hz (-6dB)/16-330Hz (-10dB), Boost (Large Room): 16-265Hz (-6dB)/14-330Hz (-10dB), EQ Cut (Small Room): EQ 25-265Hz (-6dB)/19-330Hz (-10dB)
- Inputs: (1) Balanced XLR, (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered, (1) Unbalanced RCA unbuffered, (1) Digital AES/2
- Dimensions overall (HxWxD): 268 x 270 x 290mm
- Weight: 14.4 kg
- Finishes: Matte black
For full specs see datasheet in REVIEWS AND DOWNLOADS
