Description

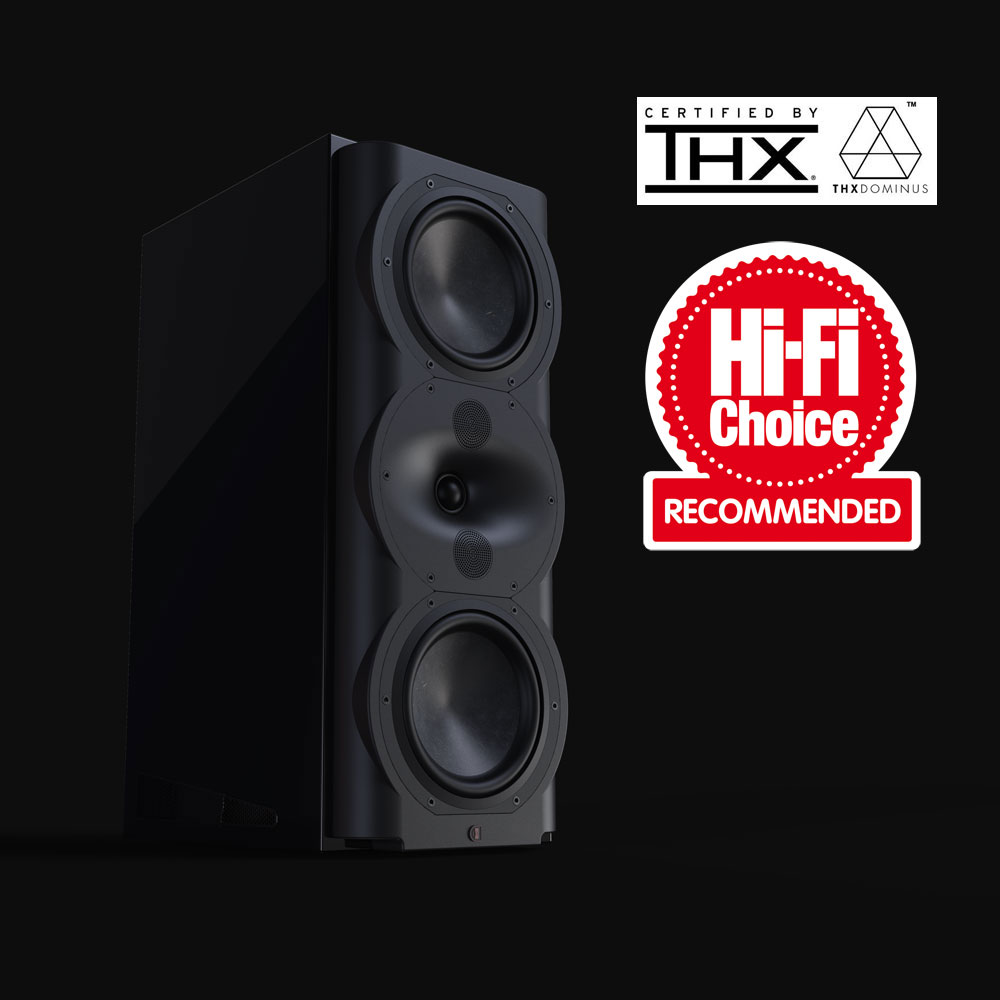

Designed to be mounted on optional stand, or wall mounted using dedicated tilt/swivel bracket. Featuring DPC-Array of three 26mm silk domes and twin 165mm HFP woofers. THX Dominus certified.

Features:

  • Enclosure Alignment: 3-way bass reflex / acoustic suspension
  • Driver compliment: DPC-Array: 26mm (3) Silk dome, woofers: 165mm (2) HPF diaphragms
  • Sensitivity: 89.2dB/2.83V/1.0m
  • Impedance: 4Ω nominal / 2.7Ω min
  • Response Linearity: 80 – 20kHz +/-1.5dB
  • Frequency Response (-10dB): bass reflex: 40 – 32kHz; acoustic suspension: 47 – 32kHz
  • Typical In Room bass extension: bass reflex: 37Hz; acoustic suspension: 43Hz
  • Dimensions (HxWxD): 546 x 230 x 336mm
  • Weight: 17.5 kg
  • Recommended Amplifier Power: 100 – 250W RMS
  • SPL capability @1m (100-20kHz): 113.2dB peak <3% – 2nd, 3rd Harmonics
  • Certification: THX Dominus, THX Ultra
  • Finishes: High Gloss Black
