Description

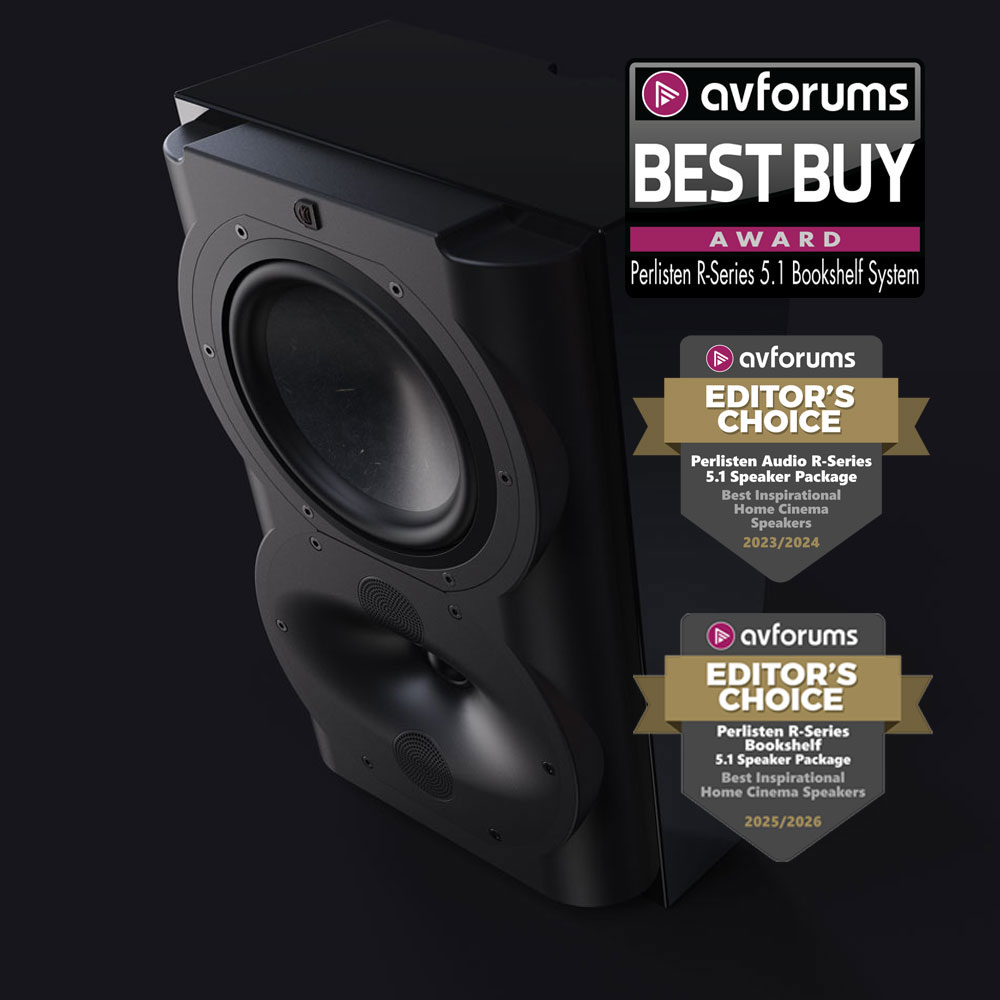

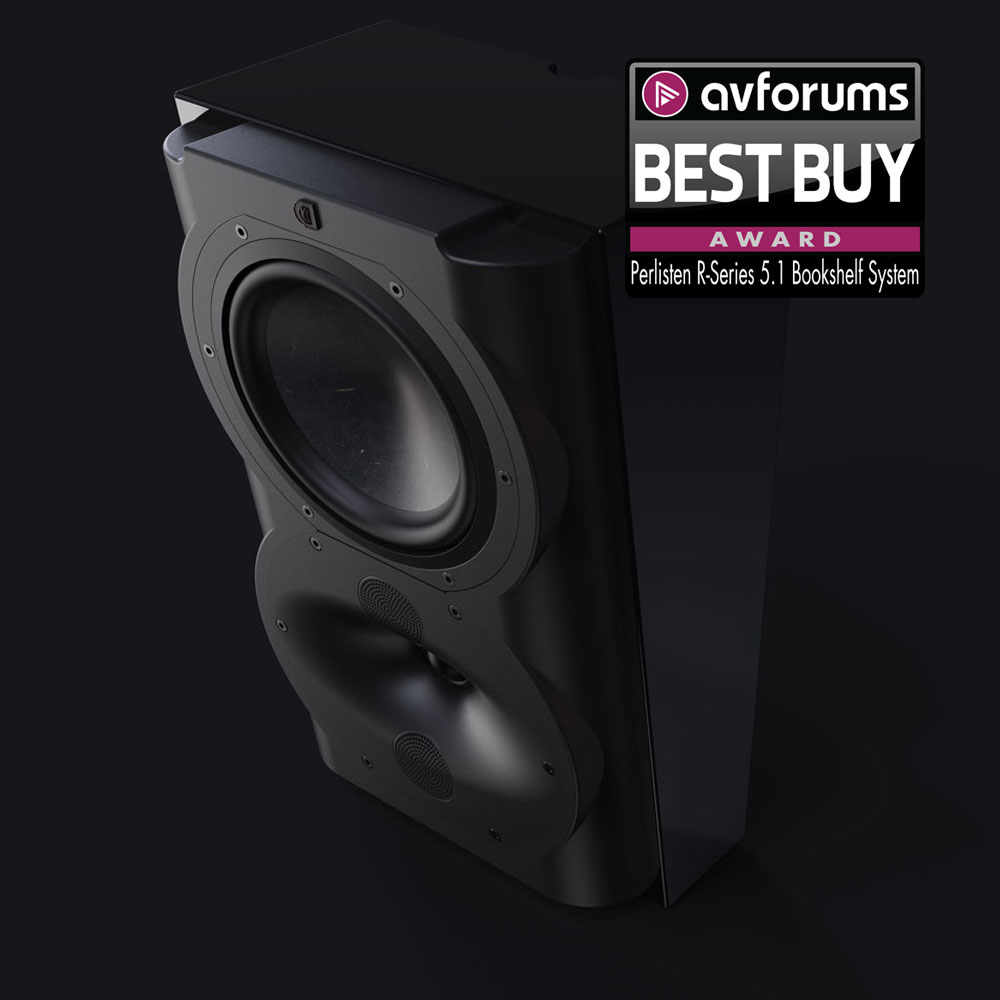

Designed to be mounted on optional stand, or wall mounted using dedicated tilt/swivel bracket. Featuring DPC-Array of three 26mm silk domes and single 165mm HFP woofer. THX Ultra certified.
Features:
- Enclosure Alignment: 3-way acoustic suspension
- Driver complement: DPC-Array: 26mm (3) Silk dome, woofers: 165mm HPF diaphragm
- Sensitivity: 86.5dB/2.83V/1.0m
- Impedance: 4Ω nominal / 3.7Ω min
- Response Linearity: 300 – 20kHz +/-1.5dB
- Frequency Response (-10dB): 48 – 32kHz
- Typical In Room bass extension: 42Hz
- Dimensions (HxWxD): 378 x 230 x 173mm
- Weight: 9.5 kg
- Recommended Amplifier Power: 50 – 200W RMS
- SPL capability @1m (100-20kHz): 109.5dB peak <3% – 2nd, 3rd Harmonics
- Certification: THX Ultra
- Finishes: High Gloss Black
