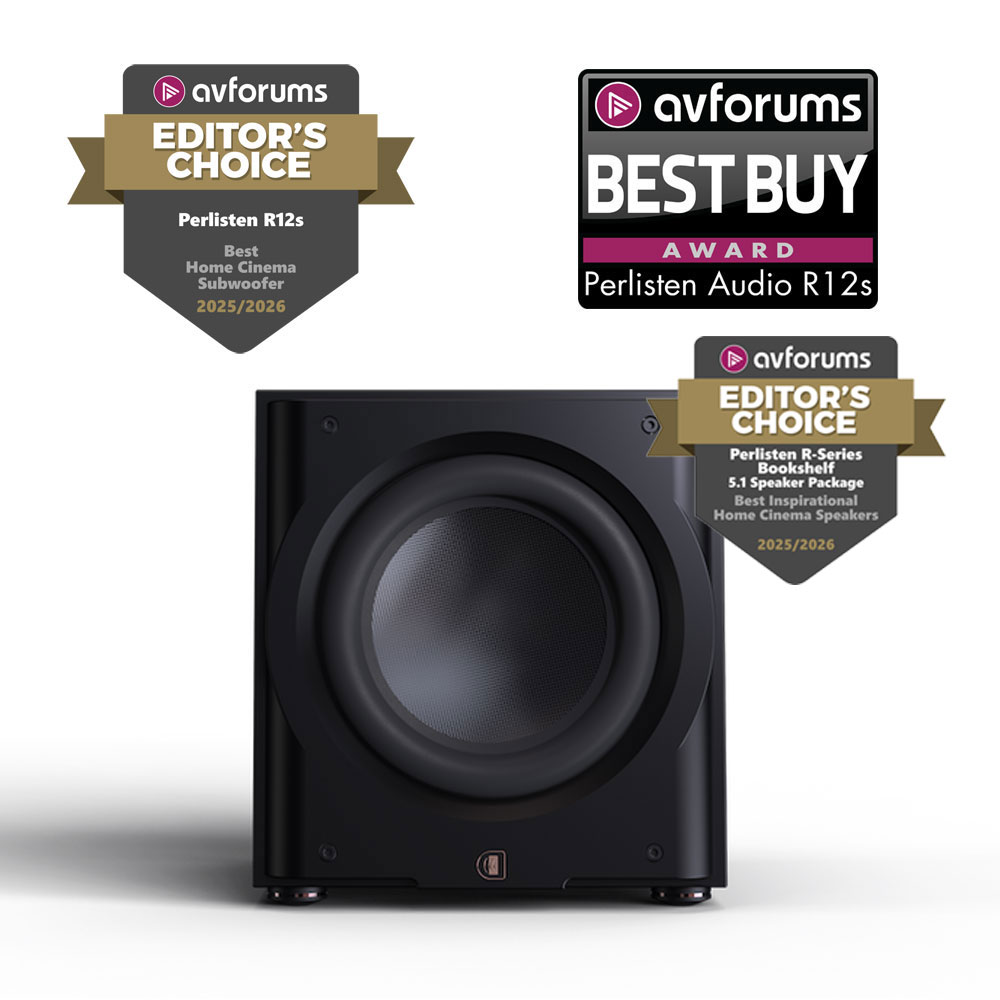

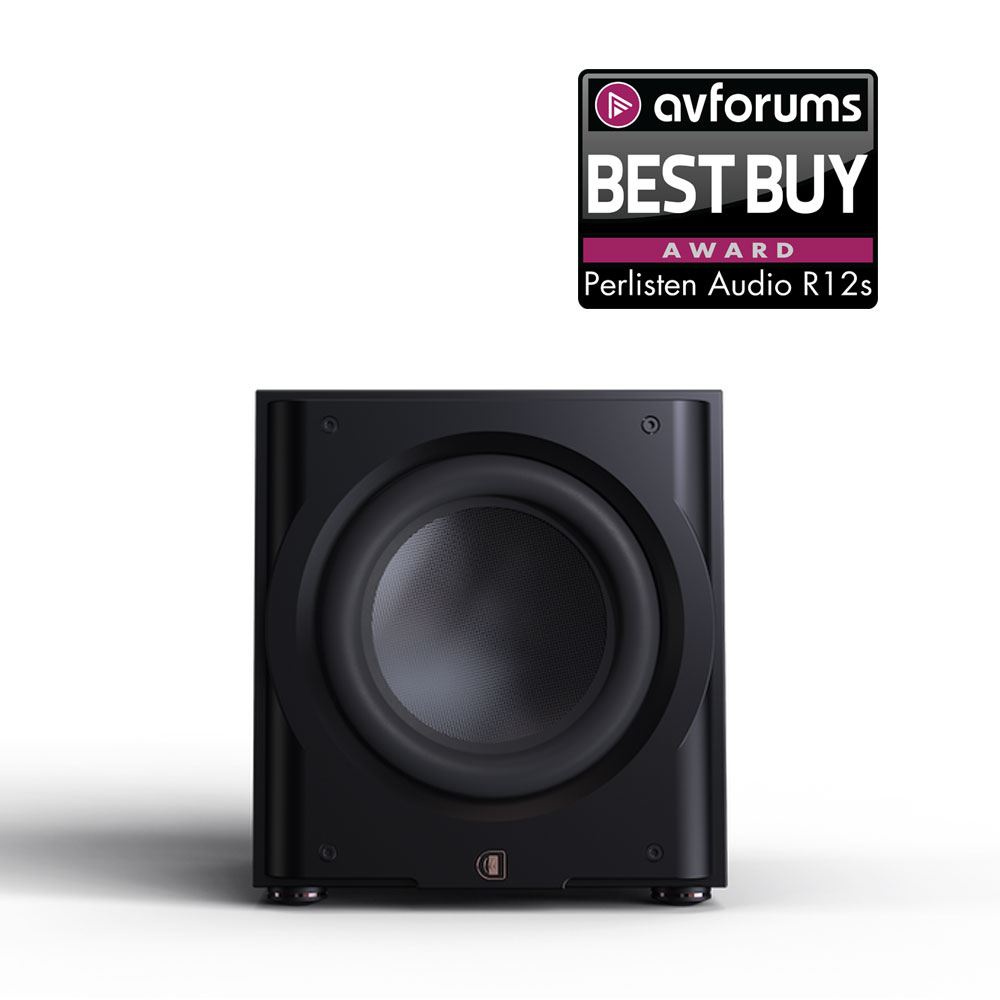

The R12s is a 12” single driver active subwoofer, powered by a proprietary 1.0kW amplifier. All functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor. Control is via 2.4” LCD touchscreen display and smartphone app.


  • Alignment: Acoustic suspension
  • Amplifier: 1.0kW rms
  • Display Interface: 2.4″ LCD colour touchscreen
  • App: iOS and Android
  • Processor: 32-bit ARM Cortex M4, double precision floating point math
  • DSP Engine: Ti DSP 48-bit data paths
  • Driver complement: 300mm, Glass fibre diaphragm +/-23.7mm linear excursion
  • Reference sensitivity: 90dB /150mV/ 1.0m
  • Frequency Response: THX EQ 20-296Hz (-6dB) / 16-380Hz (-10dB); Boost (Large Room) EQ 16-296Hz (-6dB) / 14-380Hz (-10dB); Cut (Small Room) EQ 25-296Hz (-6dB) / 19-380Hz (-10dB)
  • Inputs: (1) Balanced XLR; (1) Unbalanced RCA
  • Outputs: (1) Balanced XLR unbuffered; (1) Unbalanced RCA unbuffered
  • Parametric EQ: 10-Band PEQ with 3 user presets
  • Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
  • Phase: Variable 0-270°
  • Polarity: Normal / inverted
  • Configurable Auto turn-on and 12v Trigger: XLR, RCA
  • Dimensions (HxWxD): 428 x 390 x 375mm
  • Weight: 26.7 kg
  • Available finishes: Satin black

Please see datasheet in DOWNLOADS
