Description

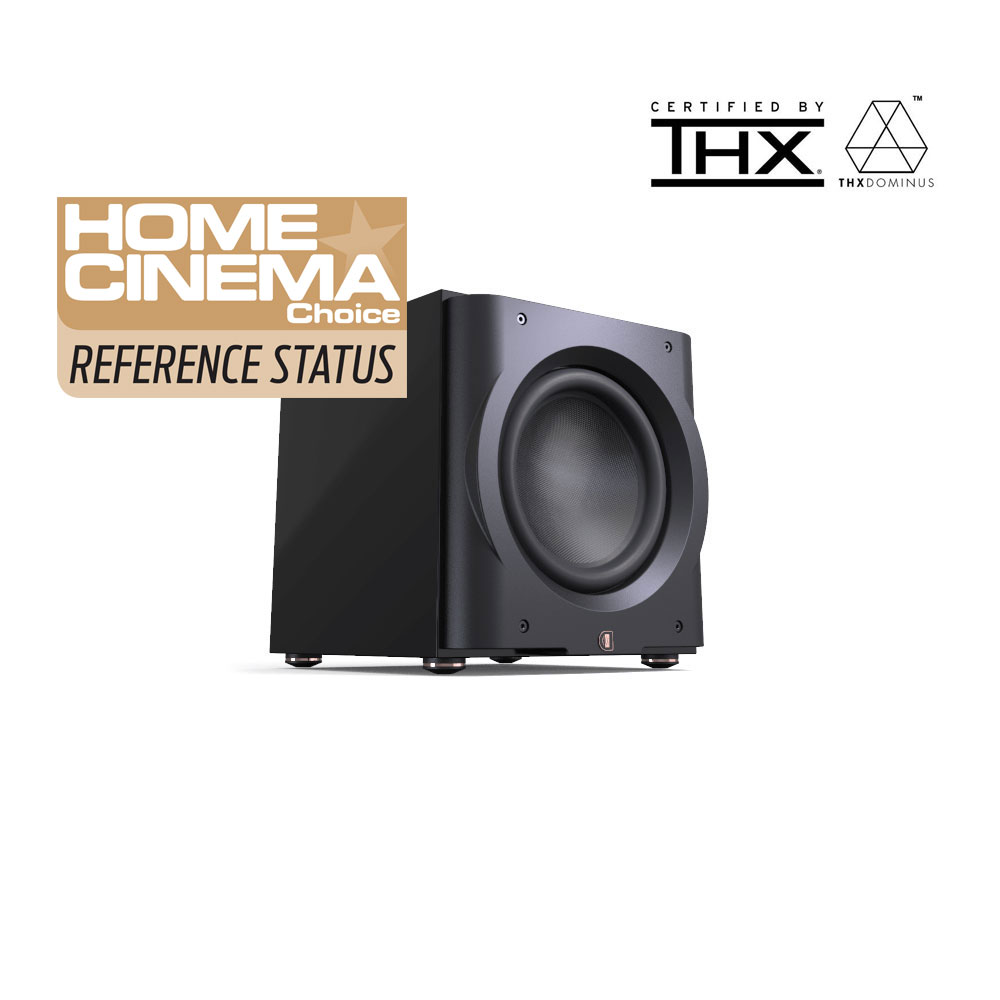

The smallest subwoofer in the series yet packs enough punch to be certified THX Dominus using a pair of D12s subs. Proprietary 1.5kW amplifier controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor. Carbon fibre composite diaphragms, multiple aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coils. 2.4” LCD touchscreen display and Perlisten App control.

Features:

  • Alignment: Acoustic suspension
  • Amplifier: 1.5kW rms short term
  • Display Interface: 2.4″ LCD colour touchscreen
  • App: iOS and Android
  • Processor: 32-bit ARM Cortex M4, double precision floating point math
  • DSP Engine: Ti DSP 48-bit data paths
  • Driver complement: 300mm, Carbon fibre diaphragm +/-30mm linear excursion
  • Reference sensitivity: 92dB / 150mV/ 1.0m
  • Frequency Response: THX EQ 20-289Hz (-6dB) / 16-330Hz (-10dB); Boost (Large Room) EQ 16-289Hz (-6dB) / 14-330Hz (-10dB); Cut (Small Room) EQ 25-289Hz (-6dB) / 19-330Hz (-10dB)
  • Inputs: (2) Balanced XLR; (2) Unbalanced RCA
  • Outputs: (2) Balanced XLR unbuffered; (2) Unbalanced RCA unbuffered
  • Parametric EQ: 10-Band PEQ with 3 user presets
  • Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
  • Polarity: Normal / inverted
  • Configurable Auto turn-on and 12V Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2
  • Dimensions (HxWxD): 448 x 420 x 450mm
  • Weight: 41.0 kg
  • Certification: THX Dominus (in pairs)
  • Finishes: Piano black
