Description

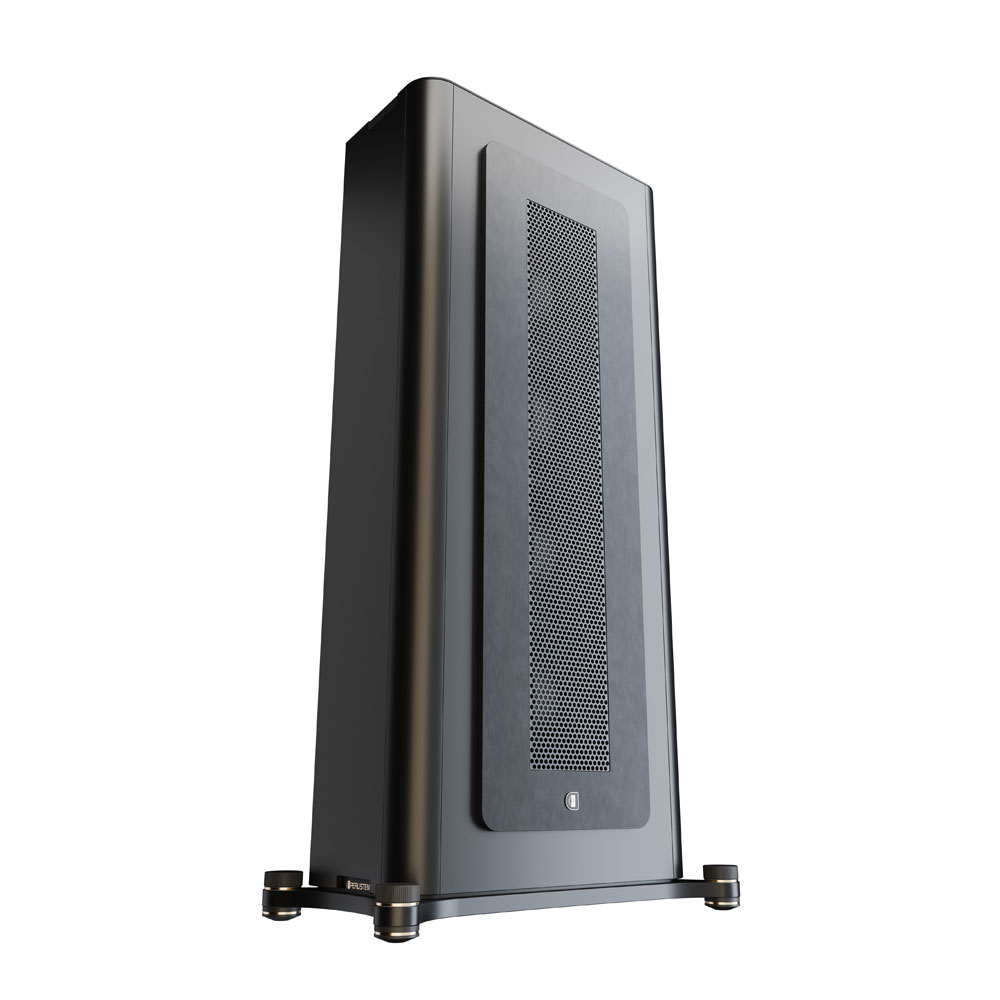

Push-Pull design utilising a unique array of (8)215mm or 8.5” drivers and a proprietary, versatile vibration isolation mounting solution. Driven by Perlisten’s DSP3000A 3kW amplifier and custom DSP, now with the addition of a digital input. Housed in a hybrid aluminium/steel chassis and front facing 2.8” colour touchscreen, the amp can be conveniently located on display in-room or hidden away in a separate room with other rack mounted components.
Specifications
- Amplifier: 3000W rms
- Driver complement: (8)215mm (8.5″), Carbon fibre diaphragm
- Reference sensitivity: 97.0 dB /150mV/ 1.0m
- Frequency Response: THX EQ: 20-290Hz (-6dB)/16-330Hz (-10dB), Boost (Large Room): 16-290Hz (-6dB)/14-330Hz (-10dB), EQ Cut (Small Room): EQ 25-290Hz (-6dB)/19-330Hz (-10dB)
- Inputs: (1) Balanced XLR, (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered, (1) Unbalanced RCA unbuffered, (1) Digital AES/2
- Subwoofer Dimensions overall (HxWxD): 1137.6 x 508.0 x 238.6mm (without brackets)
- Amplifier Dimensions overall (HxWxD): 89.0 x 429.2 x 322.4mm
- Weight: subwoofer 103.8 kg, amplifier 6.1 kg
For full specs see datasheet in REVIEWS AND DOWNLOADS
