Description

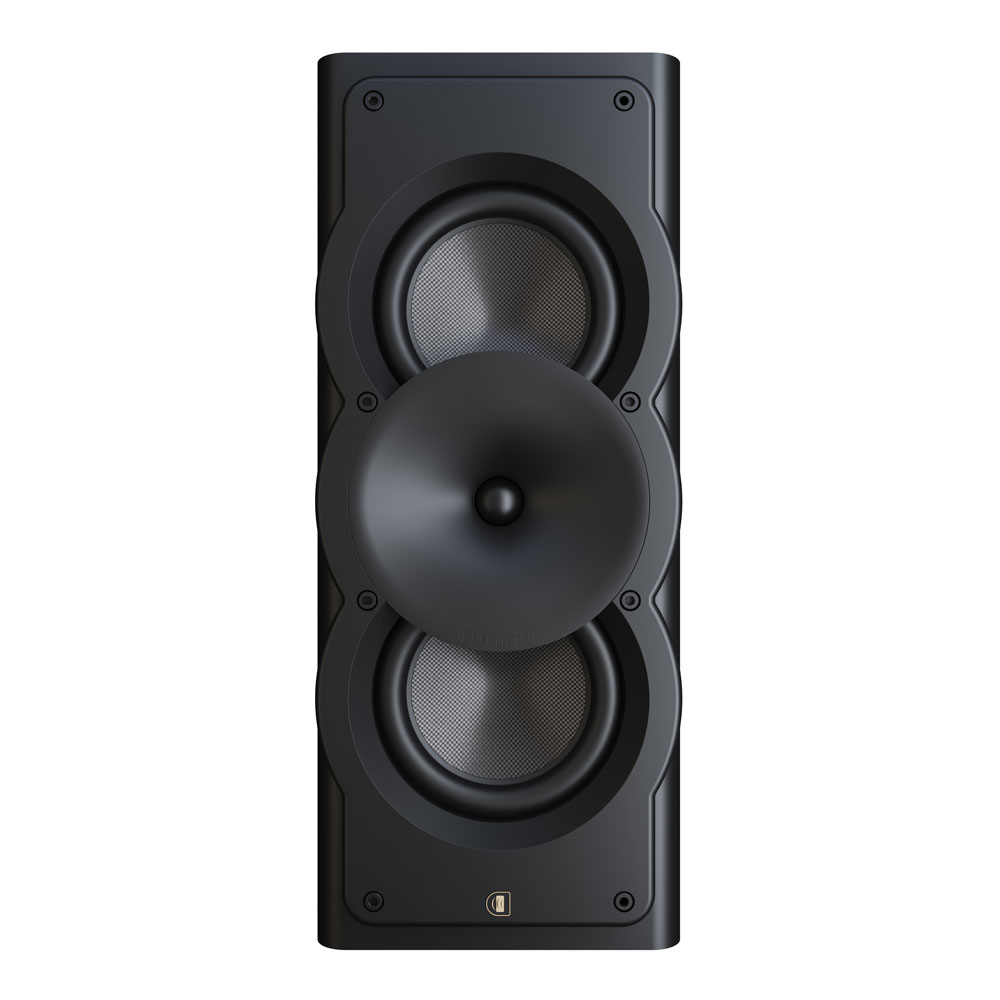

The A3m is designed to be mounted directly to the wall or ceiling mounted using our tilt swivel bracket. This product utilises a 35mm composite Teteron dome tweeter mounted in our unique waveguide and twin 215mm carbon fibre woofers.
Features and specs:
Enclosure Alignment: 2-way acoustic suspension
Driver complement: Tweeter: 35mm, composite Teteron dome; Woofers: (2) 215mm, carbon fibre diaphragm
Sensitivity: 87.4dB / 2.83v / 1.0m
Impedance: 4Ω nominal / 3.0Ω min
Response Linearity: 100 – 10kHz +/-2.0dB window
Frequency Response: 41 – 30kHz (-6dB); 44 – 33kHz (-10dB)
Typical In Room bass extension: 40 Hz (-6dB); 31 Hz (-10dB)
Recommended Amplifier Power: 50 – 250W
SPL capability @1m (100-20kHz): 111.4dB peak; 111.0dB peak <3% 2nd, 3rd Harmonics
Overall Dimensions H x W x D mm: 675 x 280 x 350
Satin Black finish, optional grilles
Datasheet in REVIEWS AND DOWNLOADS
