The SourcePoint 10 speakers are the result of 18 months of research and development led by Chief Speaker Designer Andrew Jones. Designed as a cost-no-object two-way, SourcePoint 10 is conceived with the aim of breaking through a crowded speaker market with a unique model that stands out sonically and visually. The new model is custom tooled with proprietary technology to deliver the highest sound quality and value.

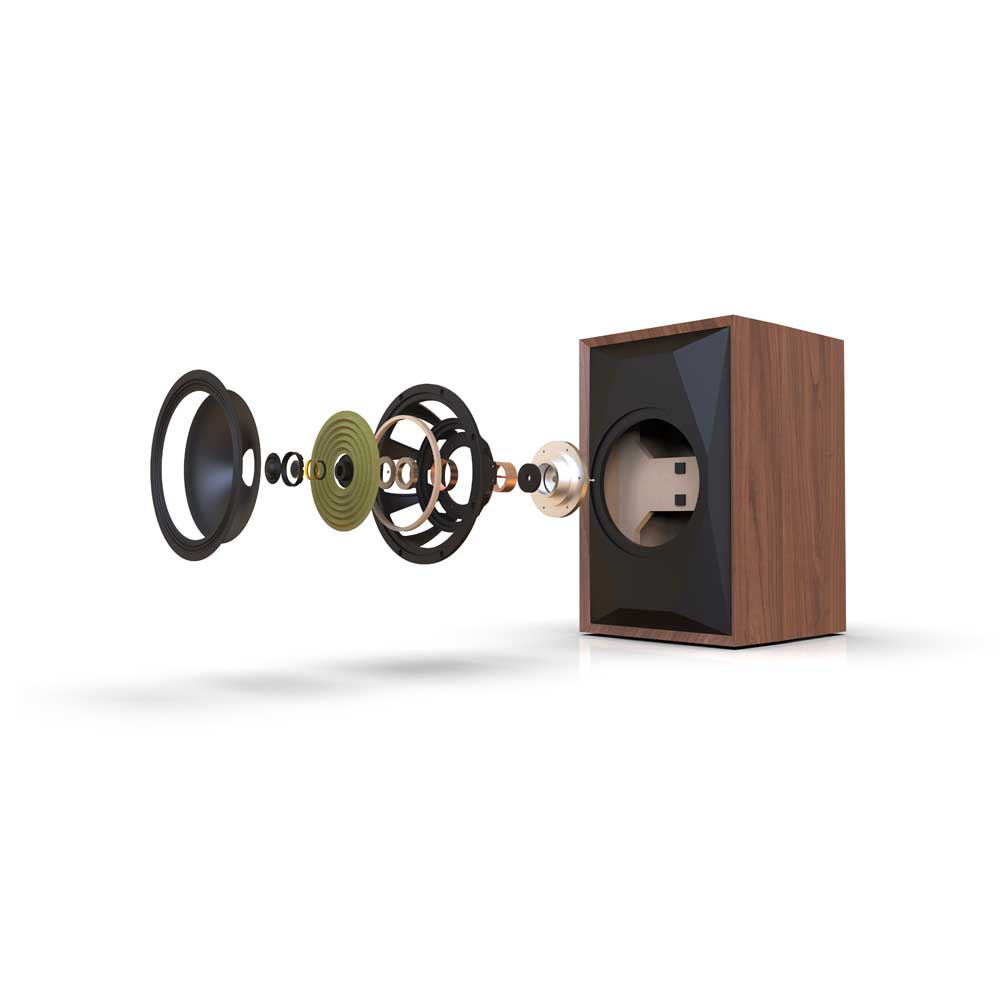

SourcePoint 10 is a two-way speaker using an original 10-inch concentric driver, its diameter selected as the ideal size for minimising cone movement while producing deep bass. Having evaluated a variety of exotic materials, Jones opted for paper having the quintessential combination of properties for the size of the cone he needed. The team worked from a paper pulp mix and devised a cone shape that both optimises resonant behaviour and meets the requirements of the tweeter waveguide. The tweeter is a 1.25-inch soft dome with a wide-roll surround and large-diameter voice coil, capable of working at the 1.6kHz crossover point.
SourcePoint 10 is driven by a magnet system that MoFi calls ‘Twin-Drive’. After months of running magnetic field simulations, Jones selected high-flux neodymium magnets for the woofer and tweeter that are precisely coupled to create a compound effect: each aids the other in driving the flux across the woofer and tweeter gaps. The Twin-Drive magnet structure was also built to create a fully symmetrical magnetic field, which eliminates flux modulation for extremely low intermodulation distortion (IMD) and accurate reproduction. This important technical achievement helps the speaker deliver exceptional clarity.

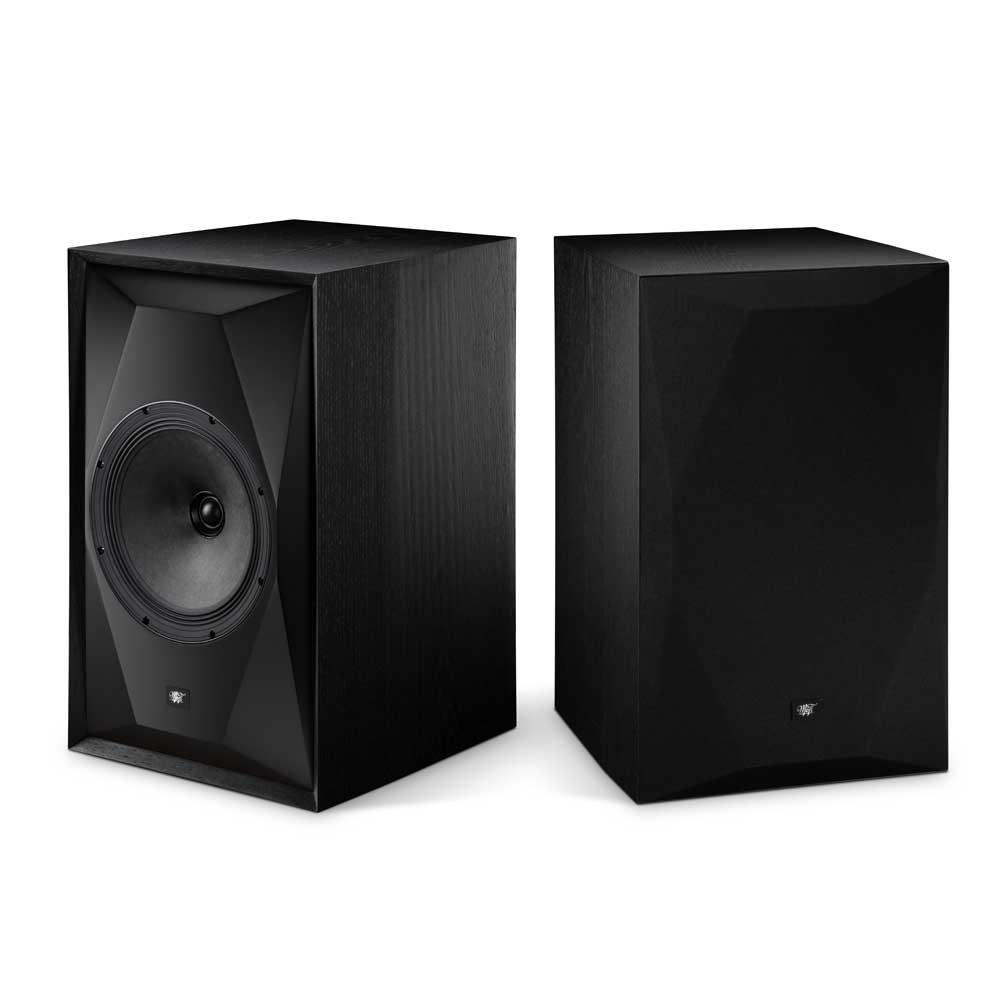

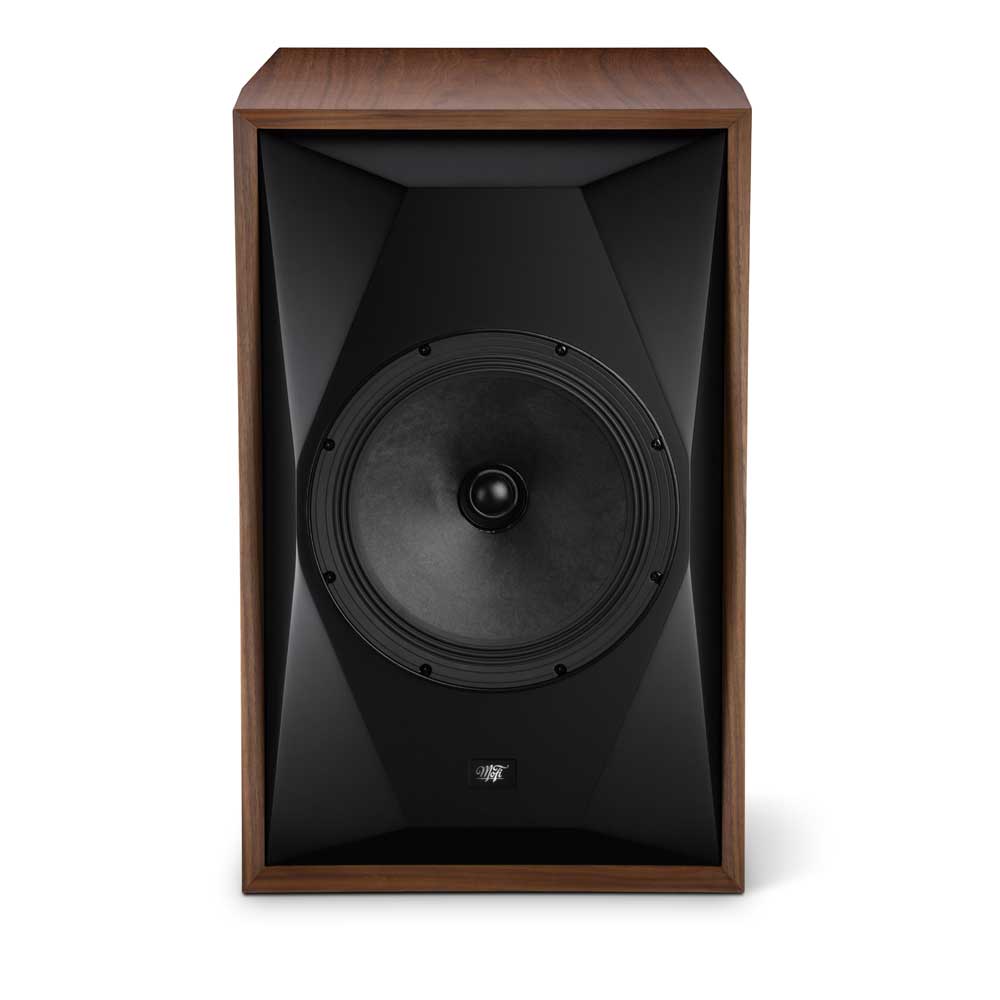

Considerable thought was also given to the cabinet and shape of the two-inch-thick front baffle. The sculpted, multi-faceted baffle stands in front of the mid-century-inspired cabinet frame to reduce diffraction. Made of one-inch-thick MDF panels for the sides, top, bottom, and back, the cabinet itself has an internal volume of 50 litres, or almost two cubic feet. This size offered MoFi the desired combination of bass extension and efficiency, with a sensitivity of 91dB, low-frequency point of 42Hz, and true eight-ohm impedance with a minimum of 6.4 ohms.
- Proprietary 10-inch concentric driver
- 1.25-inch wide roll soft dome tweeter
- 2-way vented box
- Frequency Response: 42Hz-30kHz
- Nominal Impedance: 8 ohms, 6.2 ohms minimum
- Sensitivity: 91dB/2.83V/1m
- Crossover Frequency: 1.6kHz
- Minimum Recommended Power: 30W
- Max Power Input: 200W
- Dimensions with grille (WxHxD mm): 368 x 572 x 422
- Weight: 21kg each
- Finishes: Satin Walnut or Satin Black Ash real wood veneer
- 5-way binding posts
- Magnetic grilles
- Optional dedicated stands
See reviews and downloads for the design white paper
Watch the vid HERE
