Description

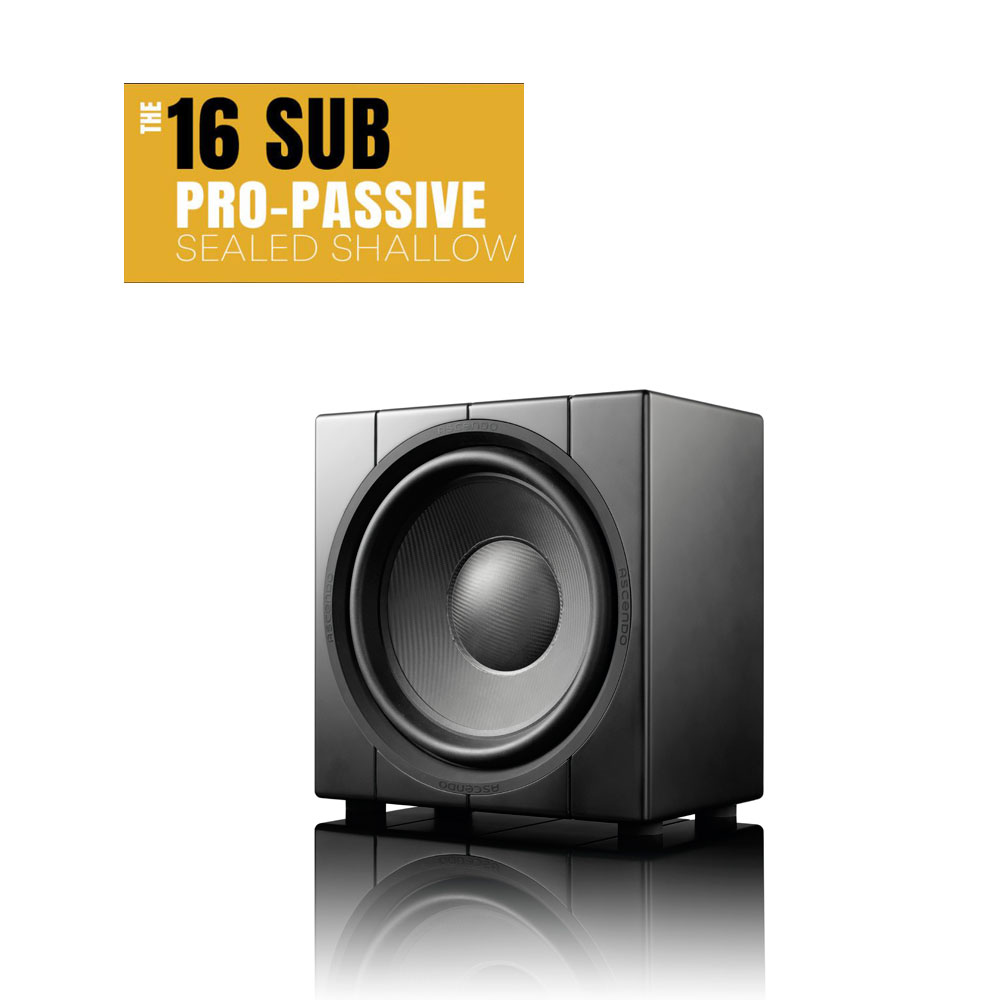

Building on the tremendous success of AIA’s 16” powered subwoofer, the Pro Passive Sealed Shallow delivers the ultimate combination of power, precision, and compact design. Measuring just 47 x 47 x 29.5 cm, this subwoofer packs a massive punch in a small package, making it easy to integrate into any space.

Features:

  • Speaker type: 16″ forward-firing, advanced carbon rohacell composite sandwich cones, neodymium motor with 4” ultra-high-temperature voice-coil
  • Xmax: 20 mm Xmax excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field
  • Recommended ASCENDO amplifiers: with DSP-4D: AIA2-2704, AIA4-6004, AIA2-6004, DSP4-10K2
  • SPL (Peak / half space 2pi): 130 dB
  • Frequency range without DSP: 45 Hz – 500 Hz / -3 dB
  • Efficiency: 90 dB / 1W/m
  • Power handling: 1700 W
  • Impedance: 4 Ω
  • Input terminal: 4-conductor Phoenix 12 AWG (3.3 mm²)
  • Enclosure: Internally braced MDF
  • W x H x D mm: 470 x 485 (470 without feet) x 295 (without grille)
  • Weight: 28 kg
  • Finish: Satin matte black

PLEASE SEE REVIEWS AND DOWNLOADS FOR FULL SPECIFICATIONS
