Description

Standard Finish: Structural paint black

Variations:

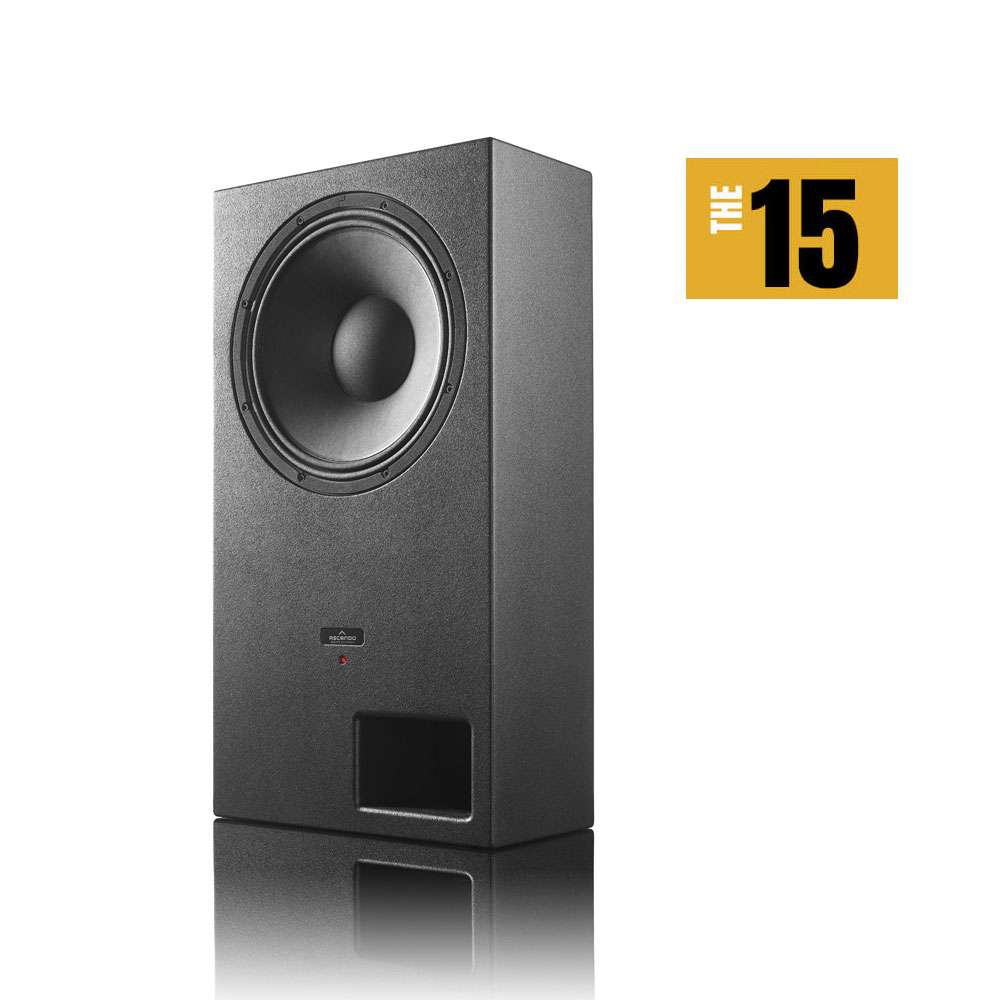

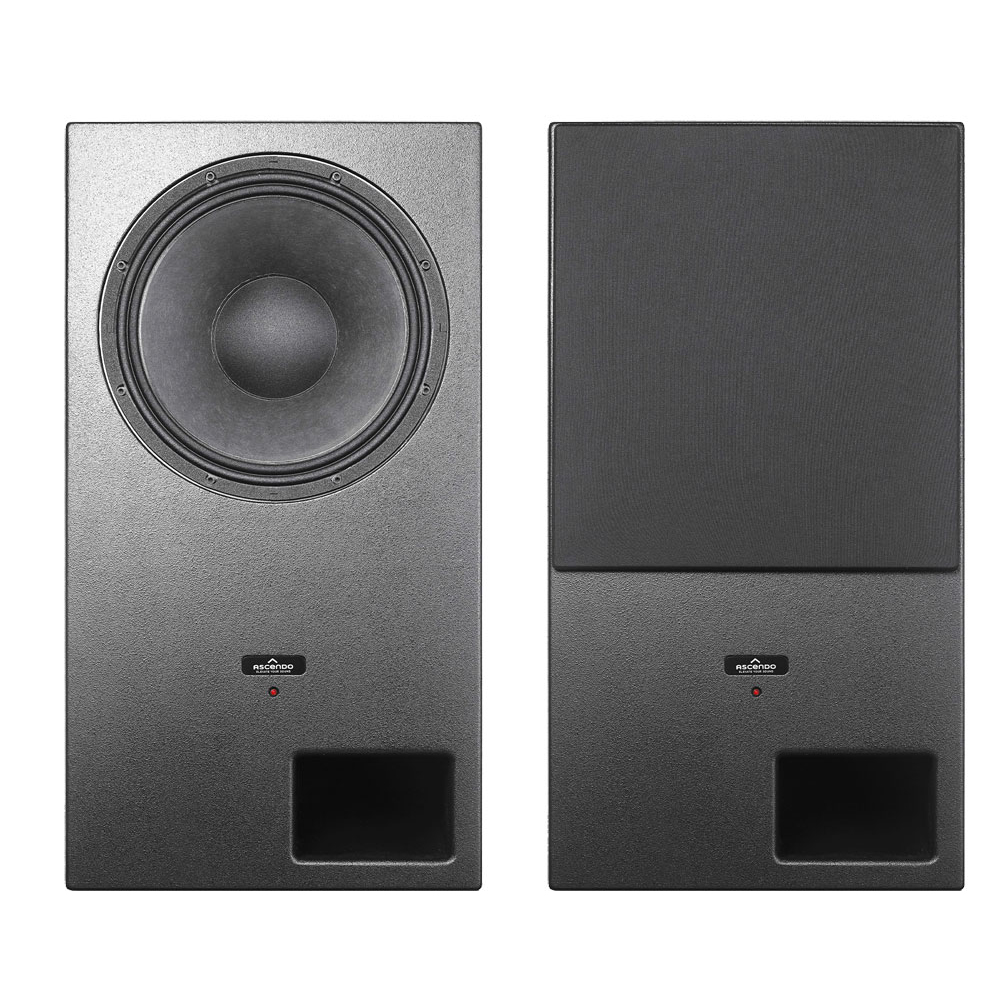

PRO PASSIVE ON WALL (Old Name: CCRM15P)

  • SPL: 127dB Cont. / 130dB Peak
  • Frequency range: 75Hz to 21kHz
  • W x H x D (mm): 470 x 870 x 240 (with plug)

PRO ACTIVE ON WALL (Old Name: CCRM15)

  • SPL: 128dB Cont. / 131dB Peak
  • Frequency range: 65Hz to 21kHz
  • W x H x D (mm): 470 x 870 x 280 (with plug)
  • New 2 Ch. DSP Amplifier built in, MF 1500W / HF 850W

PRO ACTIVE EXT ON WALL (Old Name: CCRM15 EXT)

  • CCRM15 w/o xover and with ext amp
  • SPL: 128dB Cont. / 131dB Peak
  • Frequency range: 65Hz to 21kHz
  • W x H x D (mm): 470 x 870 x 240 (with plug)

Be PRO PASSIVE ON WALL (Old Name: CCRM15-P BE)

  • As PRO PASSIVE ON WALL with BERYLLIUM compression driver

Be PRO ACTIVE ON WALL

  • As PRO ACTIVE ON WALL with BERYLLIUM compression driver
  • SPL: 128dB Cont. / 131dB Peak
  • Frequency range: 65Hz to 21kHz
  • W x H x D (mm): 470 x 870 x 280 (with plug)
  • New 2 Ch. DSP Amplifier built in, MF 1500W / HF 850W

Be PRO ACTIVE EXT ON WALL

  • PRO ACTIVE ON WALL w/o xover and with ext amp
  • BERYLLIUM compression driver
  • SPL: 128dB Cont. / 131dB Peak
  • Frequency range: 65Hz to 21kHz
  • W x H x D (mm): 470 x 870 x 240 (with plug)

For more detailed specifications, please see Datasheets in DOWNLOADS
