Description

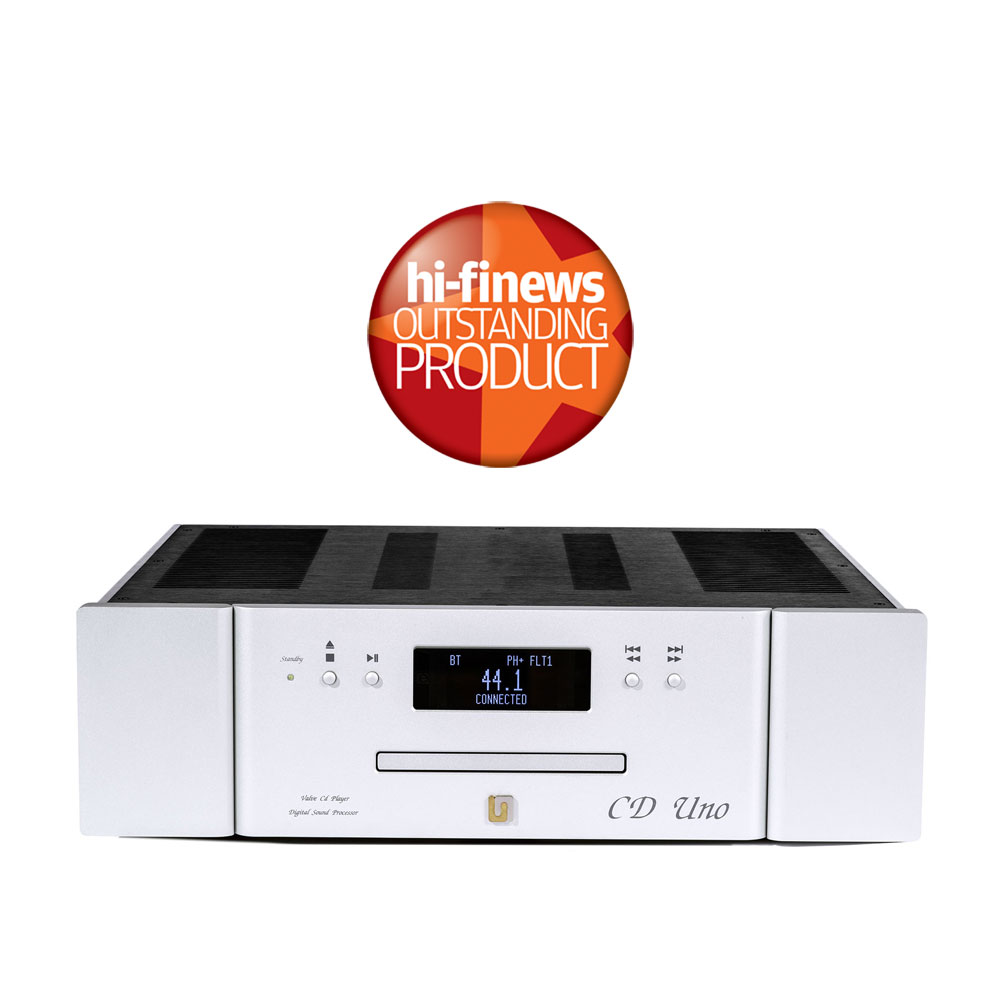

Hybrid DAC with CD transport
Features:
- Valves: 1 x ECC82
- Digital Inputs: 1 x USB 2.0: 44.1 – 384 kHz, DSD128, DSD256 Ready Res: 16 to 32 bits; 1 x Toslink™: 44.1 – 96 Res.: 16 to 24 bits; 1 x Bluetooth™ 3.0: 44.1, 48kHz Res: 16 bits
- Digital Output: 1x S/PDIF 0.5Vpp on 75 Ohms
- Transport: CD-Loader
- Display: White graphic OLED 128 X 64
- DAC: ESS Sabre ES9018K2M
- SNR: 125dB (0dBFS, 1kHz, 192kHz, “A” weighted )
- THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
- I/V Converter: NE5532AD very low noise
- Filters: 3 Digital Filters selectable by R.C: FLT 1: Fast Roll-Off, linear Phase; FLT 2: Fast Roll-Off, minimum Phase; FLT 3: Slow Roll-Off, linear Phase
- Solid state Output selectable
- Selectable absolute Phase
- Dimensions (W x H x D cm): 45 x 13 x 38
- Net weight: 10kg
- Black or Silver finish
