Description

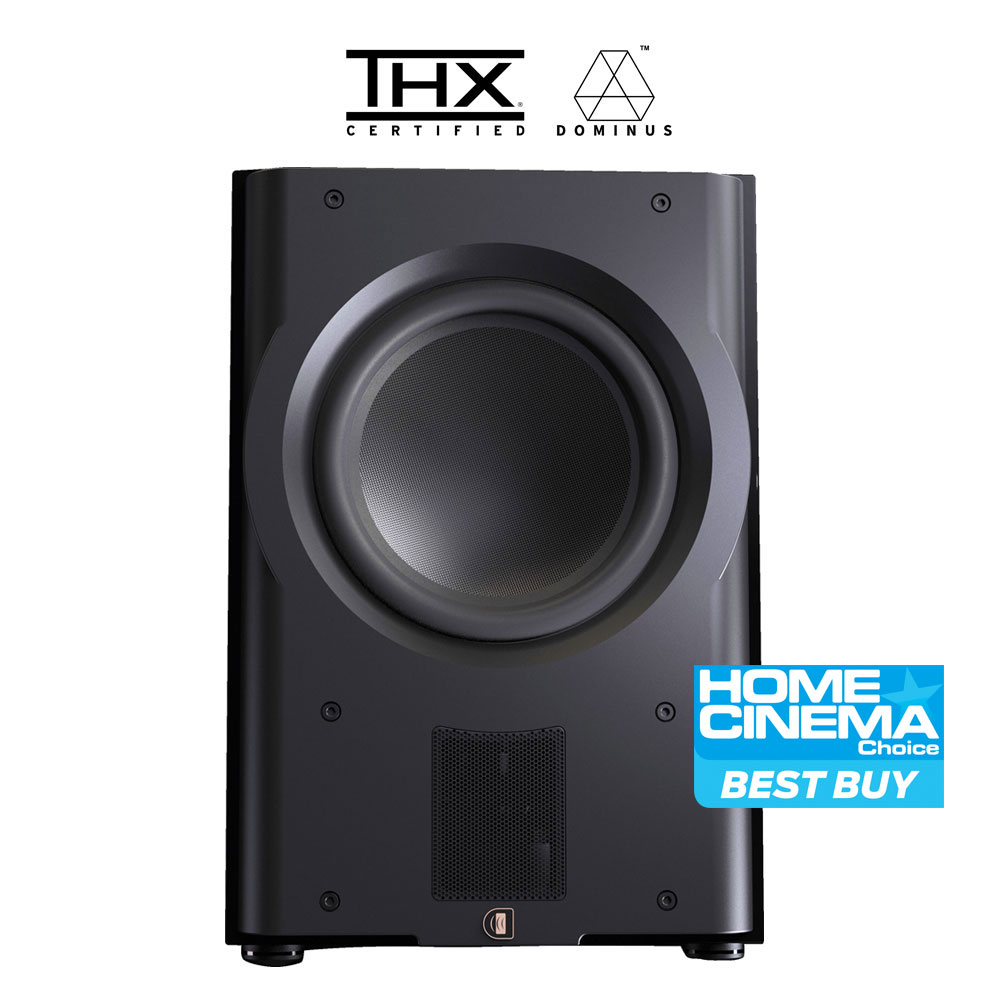

The R210s is a 2×10” push-pull active subwoofer, powered by a proprietary 1.3kW amplifier. All functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor. Control is via 2.4” LCD touchscreen display and smartphone app. Certified THX Dominus when four R210s subs are used.
Specifications:
- Alignment: Push-Pull, acoustic suspension
- Amplifier: 1.3kW rms short term
- Display Interface: 2.4” LCD colour touchscreen
- App: iOS and Android
- Processor: 32-bit ARM Cortex M4, double precision floating point math
- DSP Engine: Ti DSP 48-bit data paths
- Driver complement: (2)250mm, Glass fibre diaphragm +/-20mm linear excursion
- Frequency Response: THX EQ 20-256Hz (-6dB) / 16-278Hz (-10dB); Boost (Large Room) EQ 16-256Hz (-6dB) / 14-302Hz (-10dB); Cut (Small Room) EQ 25-290Hz (-6dB) / 19-302Hz (-10dB)
- Inputs: (2) Balanced XLR; (2) Unbalanced RCA
- Outputs: (2) Balanced XLR unbuffered; (2) Unbalanced RCA unbuffered
- Parametric EQ: 10-Band PEQ with 3 user presets
- Low Pass filter: bypass, 30-160Hz, slope 6,12,18,24dB/oct
- Phase: Variable 0-270°
- Polarity: Normal / inverted
- Configurable Auto turn-on and 12v Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2
- Dimensions (HxWxD): 545 x 380 x 450mm
- Weight: 44.0 kg
- Certification: THX Dominus (4), THX Ultra (1)
- Available finishes: Piano black
