Description

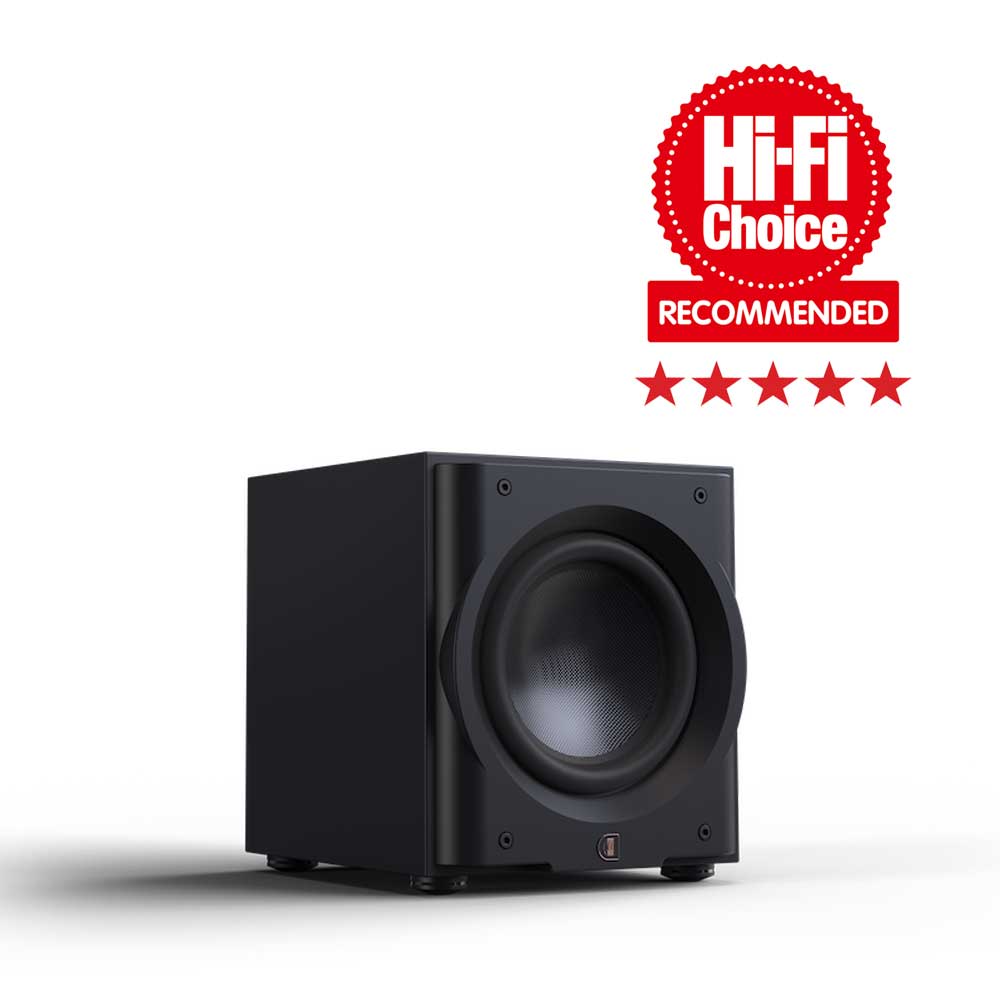

The R10s is a 10” single driver active subwoofer, powered by a proprietary 750W amplifier. All functions and safeties are controlled by a 48-bit data path DSP and 32-bit ARM M4 Cortex processor. Control is via 2.4” LCD touchscreen display and smartphone app.
Specifications:
- Alignment: Acoustic suspension
- Amplifier: 750W rms
- Display Interface: 2.4″ LCD colour touchscreen
- App: iOS and Android
- Processor: 32-bit ARM Cortex M4, double precision floating point math
- DSP Engine: Ti DSP 48-bit data paths
- Driver complement: 250mm, Glass fibre diaphragm +/-20.0mm linear excursion
- Reference sensitivity: 88dB /150mV/ 1.0m
- Frequency Response: THX EQ 20-301Hz (-6dB) / 16-380Hz (-10dB); Boost (Large Room) EQ 16-301Hz (-6dB) / 14-380Hz (-10dB); Cut (Small Room) EQ 25-301Hz (-6dB) / 19-380Hz (-10dB)
- Inputs: (1) Balanced XLR; (1) Unbalanced RCA
- Outputs: (1) Balanced XLR unbuffered; (1) Unbalanced RCA unbuffered
- Parametric EQ: 10-Band PEQ with 3 user presets
- Low Pass filter: Bypass, 30-160Hz, slope 6,12,18,24dB/oct
- Phase: Variable 0-270°
- Polarity: Normal / inverted
- Configurable Auto turn-on and 12v Trigger: XLR, RCA
- Dimensions (HxWxD): 388 x 340 x 380mm
- Weight: 21.0 kg
- Available finishes: Satin black
Please see datasheet in DOWNLOADS
