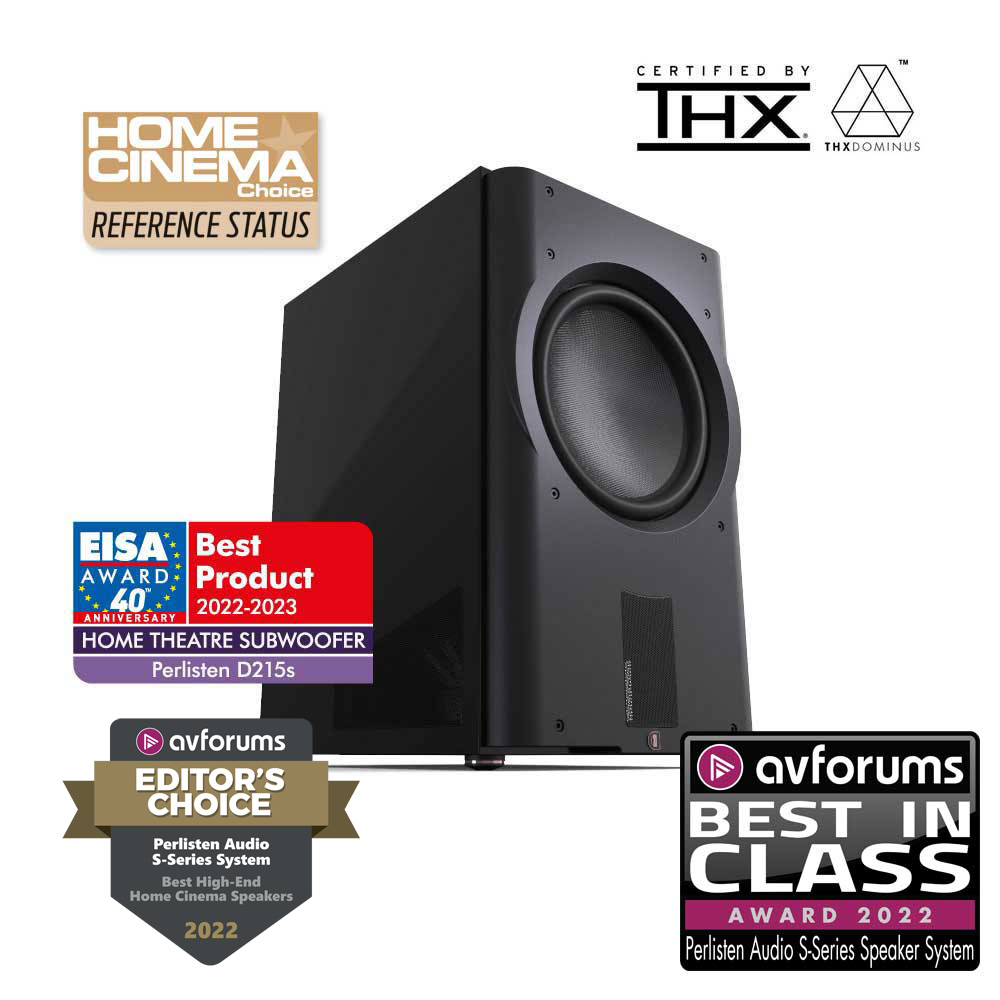

PERLISTEN MODEL D215s SUBWOOFER

Categories: 2-Channel Subwoofers, Cinema sound systems, Perlisten Audio, Reviewed, Speaker Systems, Subwoofers

Description
Reviews and Downloads

Description

Push-pull driver configuration. Carbon fibre composite diaphragms. Aluminium shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminium voice coils. Proprietary 3.0kW amplifier controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor. All D-Series subs feature a 2.4″ LCD touchscreen display and the ability to control advance settings using Perlisten’s App. THX Dominus certified.

Features:

Alignment: Push-Pull, acoustic suspension
Amplifier: 3.0kW RMS short term
Display Interface: 2.4″ LCD colour touchscreen

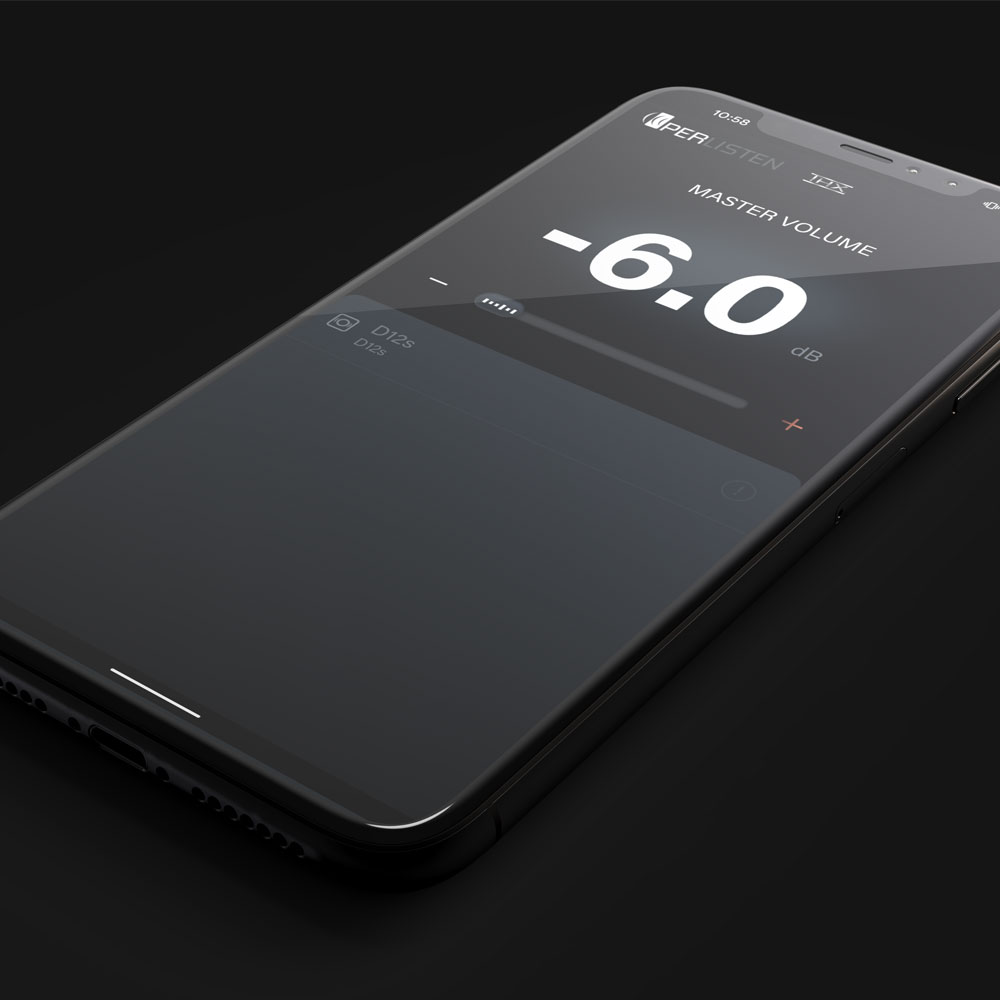

App: iOS and Android
Processor: 32-bit ARM Cortex M4, double precision floating point math
DSP Engine: Ti DSP 48-bit data paths
Driver complement: (2) 380mm Carbon fibre diaphragm, +/-30mm linear excursion
Reference sensitivity: 92dB / 150mV/ 1.0m
Frequency Response: THX EQ 20-200Hz (-6dB) / 16-210Hz (-10dB); Boost (Large Room) EQ 15-200Hz (-6dB) / 13-210Hz (-10dB); Cut (Small Room) EQ 24-200Hz (-6dB) / 18-210Hz (-10dB)
Inputs: (2) Balanced XLR; (2) Unbalanced RCA
Outputs: (2) Balanced XLR unbuffered; (2) Unbalanced RCA unbuffered
Parametric EQ: 10-Band PEQ with 3 user presets
Low Pass filter: bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase: variable 0-270°
Polarity: normal / inverted
Configurable Auto turn-on and 12V Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2
Dimensions (HxWxD): 805 x 500 x 650.5mm
Weight: 92.0 kg
Certification: THX Dominus
Finishes: piano black

REVIEW LINKS:

Perlisten D215s, EISA HOME THEATRE SUBWOOFER 2022-2023, SEE REVIEWS AND DOWNLOADS

Perlisten ‘S’ SERIES 5.1 ch system, AVForums Best High-End Home Cinema Speakers 2022 “the Perlisten S-series speakers and D215s subwoofer represent the state of the art in loudspeaker design.” AWARD ROUNDUP HERE

Perlisten ‘S’ SERIES 5.1 ch system, AVForums, Nov 2022, Best-in-Class ““this is the best system I have heard in my room or, for that matter, anywhere.” FULL REVIEW HERE

Perlisten D215s, Home Cinema Choice September 2022, REFERENCE STATUS, SEE REVIEWS AND DOWNLOADS

Perlisten D215s, Audioholics.com: “If you want one of the most advanced and accurate subwoofers on the planet, the D215s has to be my first suggestion.” FULL REVIEW HERE

PERLISTEN D215s PRODUCT FLYER

Download

EISA HOME THEATRE SUBWOOFER 2022-2023

Download

The Perlisten D215s has been recognised as the world’s most accomplished home theatre subwoofer by EISA, the Expert Imaging and Sound Association of sixty technology magazines, websites and social media commentators from 29 countries. The award citation says: “a ﬂagship subwoofer engineered to deliver a reference-grade performance in a large cinema space – and certiﬁed THX Dominus – Perlisten’s D215s sounds as purposeful and powerful as it looks. Featuring two custom-made 15in bass drivers in a force-cancelling conﬁguration, propelled by a 3000W ampliﬁer stage, it’s arguably no surprise this sub drops deep and slams hard. What’s perhaps more remarkable is the control and accuracy it brings to movie sound mixes and music material, traits that prove the quality of Perlisten’s cabinet design and application of advanced DSP. App-based parametric EQ and operation, comprehensive connections and a smart colour touchscreen display are further reasons to adore this premium bass-maker.”

PRODUCT REVIEW, HOME CINEMA CHOICE SEPT 22 'REFERENCE STATUS'

Download

The awe-inspiring Perlisten D215s THX Certified Dominus subwoofer has Home Cinema Choice Editor Mark Craven diving for cover. Awarding 'Reference Status' and five stars he says: “What the D215s brought to this sequence was a presence across the low frequencies that felt both utterly natural and occasionally terrifying…This is a grown-up woofer destined for high-end systems and with the tools to be properly integrated within one. Simply brilliant.”
